Vaccum Wiper Mounting; 31.03A Windshield Wiper
Topic Started: Mar 20 2009, 11:01 PM (852 Views)
jenks54
Member
[ *  ]
I took off aftermarket electric wipers to return to vaccum on my '54. Can somone describe the correct mounting of the driver's side vac motor? From pictures on the 3B Page, it appears that there are spacers between the windshield frame and the wiper motor. Can anyone tell me how long the spacers are?

Thanks for any assistance!
Offline Profile Quote Post Goto Top

Rus Curtis
Member
[ *   *   *   *   *  ]
Yes, there are spacers between the wiper motor and windshield frame. Sorry, I don't have access to mine right now to measure. You could contact Harry Sheets (lists parts for sale on WillysTech) as I'm sure he has some. Or you could use some washers and build up enough to match the size. You'll need enough to keep the wiper arm from contacting the hood when your windshield is folded down.

Worth noting is if you don't have original wiper arm parts, even with the correct spacers your wiper arm will contact the hood. This was my problem and I had to add washers to the spacers. I've since found the correct wiper arm.
Rus Curtis
Alabama
'54 CJ-3B "Green Gruntt"
Bantam T3-C
Offline Profile Quote Post Goto Top

jenks54
Member
[ *  ]
Thank-you Rus. I sure don't want those arms hitting the hood...glad to know that might be an issue. I don't have the hood on yet.

Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
jenks54,Mar 21 2009
12:01 AM
I took off aftermarket electric wipers to return to vaccum on my '54. Can somone describe the correct mounting of the driver's side vac motor? From pictures on the 3B Page, it appears that there are spacers between the windshield frame and the wiper motor. Can anyone tell me how long the spacers are?

Thanks for any assistance!

Posted Image

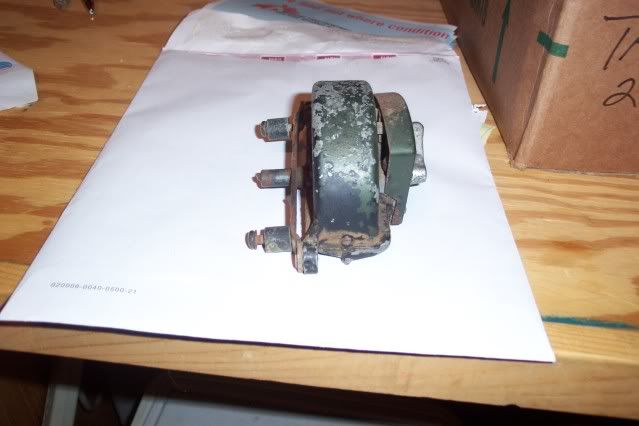

Here is a pic of the wiper I took off my 53 CJ3B. The main shaft is broken and I replaced it with an electric unit.

The spacers are 1/2" in diameter and 1/2" long. It apperars to be made of Bakelite. The hole is just large enough for a #10-32x7/8" pan head screw to go through. It has an internal star washer.

Listen to Rus on the hood problem. I encounter the shaft length problem when I lower the windshiled to the hood.
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

jenks54
Member
[ *  ]
Thank-you for the dimensions, Don. I hope your reply and Rus' make it to the tech info. It might save someone some trouble.

Would you be interested in selling that wiper motor with the broken shaft? Maybe I can get it back in action.
Offline Profile Quote Post Goto Top

1954cj3b
Member Avatar
Member
[ *   *   *   *   *  ]
jenks,
I have one if you need one $15.+shipping sound fair
just shoot me a email
yesitsajeepthing@hotmail.com
john
3b'ers do it on all 4's
Posted Image
Offline Profile Quote Post Goto Top

jenks54
Member
[ *  ]
Thanks for replying John. I will send you an email.
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
jenks54,Mar 29 2009
11:18 PM
Thank-you for the dimensions, Don. I hope your reply and Rus' make it to the tech info. It might save someone some trouble.

Would you be interested in selling that wiper motor with the broken shaft? Maybe I can get it back in action.

Jenks54
Sorry for the delay in answering. I'm not ready to get rid of the wiper yet, but thanks for your offer.
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
