11 Inch Backing Plates; GROUP 24 BRAKE SYSTEMS
Topic Started: Apr 1 2009, 10:17 PM (948 Views)
knapmich
Member
[ *   *   *  ]
I need some info, I want to put 11 inch backing plates and brakes on my 3B. Will a early wagon or pickup backing plate work? Thanks
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
They do bolt up, but they are not the self energizing, self adjusting brakes that later model CJs( '72-75s) had. THe tech section over at the earlycj5.com website has a vehicle donor list that had the 11'ers. The backing plates are not being made anymore, so they only way to get them is pay or search wrecking yards, want adds, etc. somebody on the willys tech parts board has a per axle price of $320.
I have 11'ers on all four corners and it's a great upgrade.
In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top

Chet
Member Avatar
Agent CJ3B
[ *   *   *   *   *  ]
Here's my tip on finding the 11" backing plates.

Two words...Ford Bronco.

Track down your local "Rock Crawlers", a lot of 'em use the older Ford Bronco's and one popular mod with this group is to upgrade to disk brakes. They'll practicably give you the old backing plates! B) Worked for me. B)
'65 CJ3B
Spring Branch, Texas
My story Texas High-Hood History
"Like" my Facebook Fan Page High Hood Hijinks
Visit my YouTube Channel Horse Face Films
Offline Profile Quote Post Goto Top

RamblinCJ3B
Member
[ *   *   *   *   *  ]
Jeepster Commando 72-73.That is what I robbed mine from.

I believe Wagoneers from 72 up.
Eddie
Clovis,Ca
1956 Willys PU
1962 USN CJ3B Stock
1971 Hurst Jeepster 350
1972 Commando 4.0 HO
1972 Commando I6 258
1975 J20 401
Offline Profile Quote Post Goto Top

Bryan
Member Avatar
Member
[ *   *   *   *   *  ]
I got mine from an early 70's Wagoneer.

1954 CJ3B...Original: F-134, T90, D18, Front and rear axles, Ross steering, Harrison heater, all body parts
Replaced parts: Carter YF938SD.
Upgrades: Front disc brakes (77 CJ5), rear 11" brakes (early 70's Wagoneer), dual master cylinder (Herm), roll bar, seat belts, custom wiring harness w/ turn signals (me), Carter glass bowl fuel filter, Tightsteer.
3rd generation of original owner
South central KY
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
http://www.film.queensu.ca/CJ3b/Tech/Brakes11inch.html

I found this article on the Techs and Tips Page. Hope it'll help some.
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
DJ5s(postal) from the mid seventies have 11" brakes also. You won't need brakes from the rear axle unless you want to modify your jeep to use the cable emergency brake setup at each rear wheel. If you have a good Ebrake attached to your D18 you can bolt up front brake backing plates to your rear axle, but you need to swap the wheel clyinder out so your using a rear wheel cylinder on the rear wheels (smaller size 7/8")

Not sure what state you're in but; http://denver.craigslist.org/pts/1104638518.html

This guy may have what you need. What you're looking for is the six bolt circular mounting pattern that's the same as your dana 44, dana 25

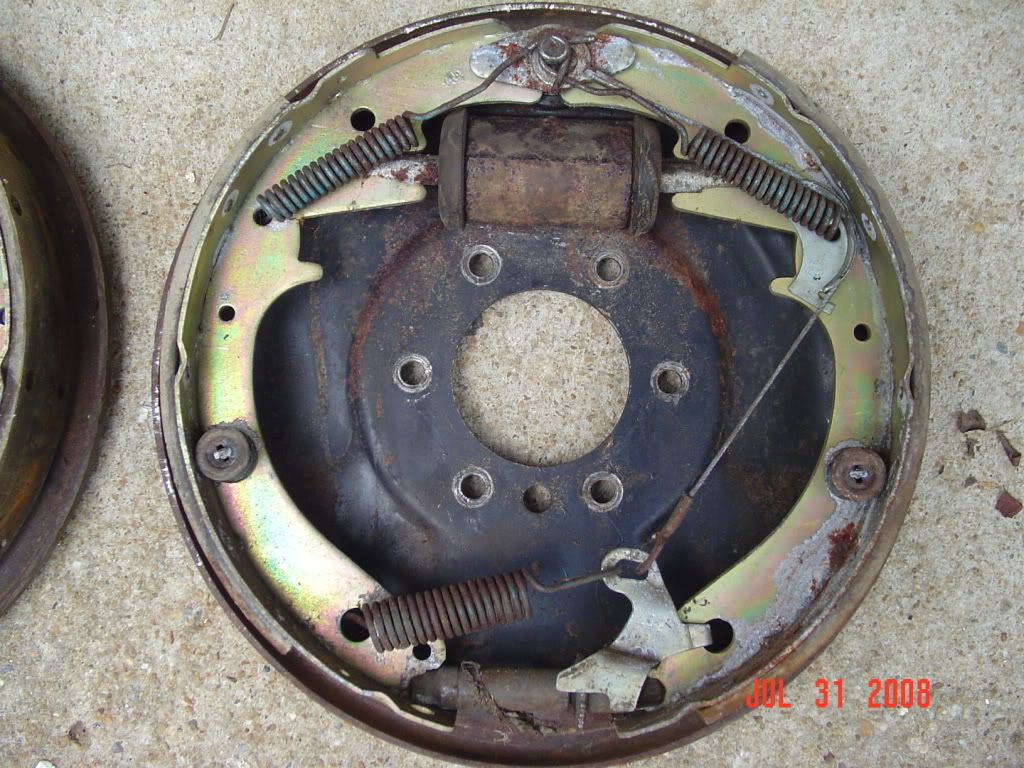

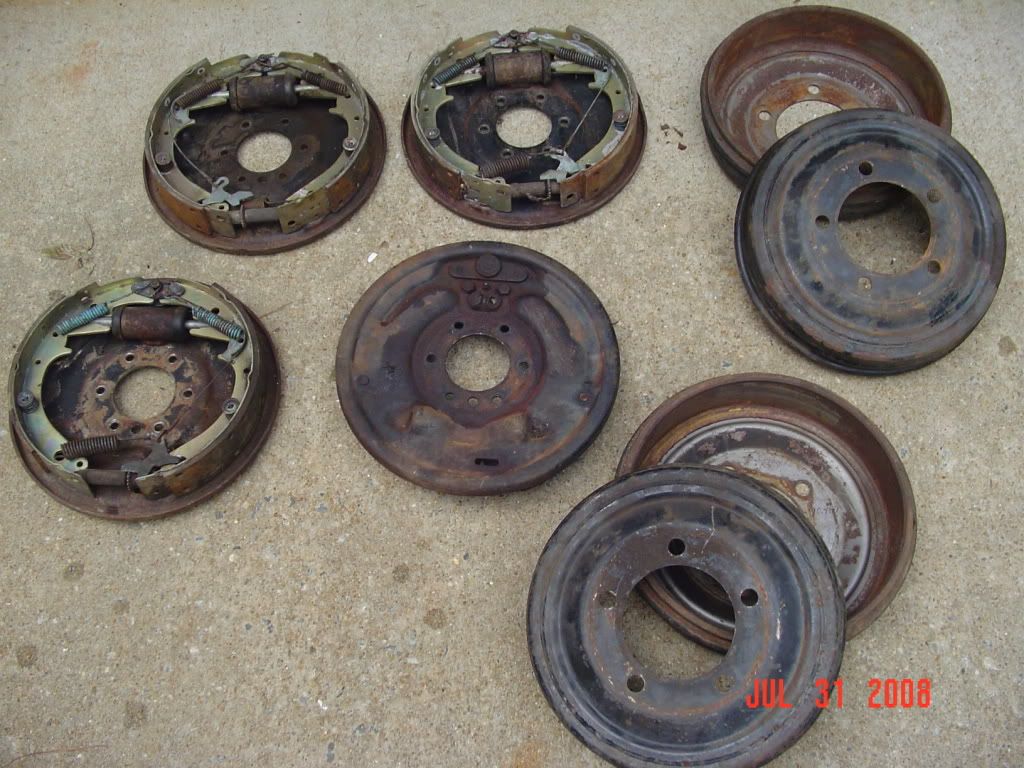

Pictures are of my 11" brake mod
Posted Image
Posted Image
Posted Image
