Ross Steering Gear Box "marks"; 23.02 Steering Gear Assembly
Topic Started: Apr 7 2009, 01:57 PM (1,163 Views)
Jax
Member
[ *   *   *   *   *  ]
I was reading front end alignment advice from Dr.Vern @ Vervco.com about the Ross steering gear box. The horizontal sector shaft & the steering gear arm have marks on them to properly align them for assembly. He says when these marks are aligned & the forward arm of the bellcrank is pointing straight ahead, the Ross steering gear box should be at the center of travel. This is here the steering gear should be when the toe-in for each wheel is set.
On my 55 3B the origional horizontal sector shaft & the steering gear arm have the marks.
The replacement sector shaft & the steering gear arm don't. :blink:
Any one else run into this before?? :huh:
Some experienced advice would be greatly appreciated.
Thanks, Jax
Aloha, Kealoha Jax
kealohajax@yahoo.com
Waihou, Kainaliu Mauka, Hawaii
Willys Trans-Vintage project 1955 CJ3B
My Build:
http://z4.invisionfree.com/CJ3B_Bulletin_B...?showtopic=2775

http://s767.photobucket.com/home/kealohajax
Offline Profile Quote Post Goto Top

Larry (TX)
Member
[ *   *   *   *   *  ]
Jax,

Don't know if this is exactly what you're looking for, but a friend and I just finished today installing a rebuilt steering box in a '44 Willys MB. Neither the splined shaft of the gear box nor the pitman arm had alignment marks on them. I've found this before on repro parts and have also found the easiest way to re-align the system is to turn the steering wheel all the way to lock in one direction (either direction will do); while the front tires are off the ground, turn them all the way in the same direction and insert the ball of the pitman arm back into the hole of the drag link and tighten the set screw accordingly.

This procedure should put everything back in correct alignment, (same # of turns lock to lock).

Larry S.
Larry Steed
Pearland, Texas
'53 Willys CJ3B
'52 Willys M38
'86 Chevy M1009 CUCV (K5 4x4 Military Blazer)
M100 1/4 ton jeep trailer
M416 1/4 ton jeep trailer (2 ea.)
M101 CDN 1/4 ton jeep trailer
Offline Profile Quote Post Goto Top

Jax
Member
[ *   *   *   *   *  ]
Thanks Larry,
Once again you've helped me out with this Willys project. I'll give it a try to reset the steering. I appreciate all the the help.
Jax
Aloha, Kealoha Jax
kealohajax@yahoo.com
Waihou, Kainaliu Mauka, Hawaii
Willys Trans-Vintage project 1955 CJ3B
My Build:
http://z4.invisionfree.com/CJ3B_Bulletin_B...?showtopic=2775

http://s767.photobucket.com/home/kealohajax
Offline Profile Quote Post Goto Top

Oswald
Member Avatar
Member
[ *   *   *   *   *  ]
Posted Image

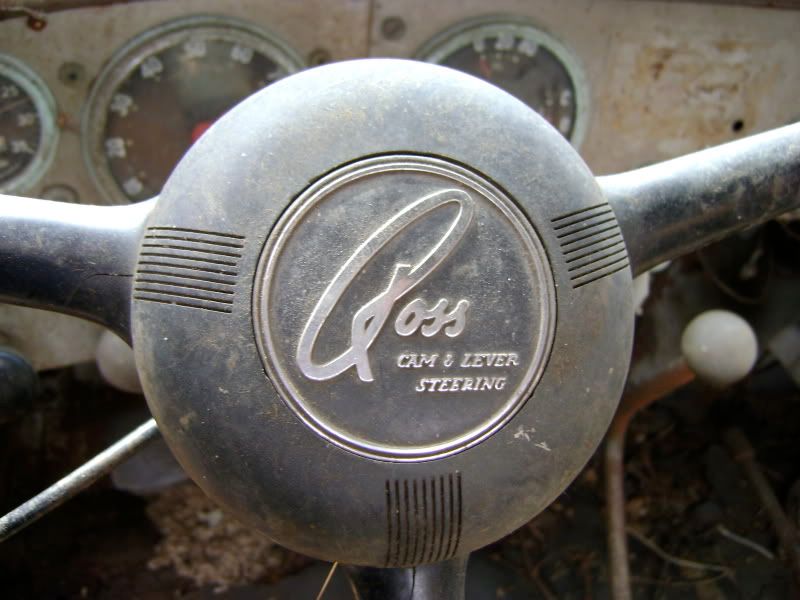

Thought this was neat Ross steering connection.

I've been helping a friend with a 1958 FWD.
Offline Profile Quote Post Goto Top
