Koenig J58
Topic Started: Sep 21 2009, 08:32 AM (641 Views)
RobJ
Member
[ *  ]
I have a chance to purchase a Koenig j58 pto with cable shifters for a good price. My question is would there be any problems with mounting this on a '54 cj3b?
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
As you know ...the P.T.O. itself is the driving unit that attaches onto the rear of the model 18 transfer case.
The model 58 Koenig has dual (front and rear) output shafts.
The model 58 is perhaps the most desireable of the Koenig P.T.O.'s
One can operate either front or rear shafts but not both simultaneously.
The J 58 is a cable controlled version.
It was designed for use in FC Jeeps
It is a simple modification of the standard twin stick control design.
With proper shift levers it can easily be converted back to twin stick control.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
oldtime,Sep 21 2009
08:27 PM
As you know ...the P.T.O. itself is the driving unit that attaches onto the rear of the model 18 transfer case.
The model 58 Koenig has dual (front and rear) output shafts.
The model 58 is perhaps the most desireable of the Koenig P.T.O.'s
One can operate either front or rear shafts but not both simultaneously.
The J 58 is a cable controlled version.
It was designed for use in FC Jeeps
It is a simple modification of the standard twin stick control design.
With proper shift levers it can easily be converted back to twin stick control.

Robj,

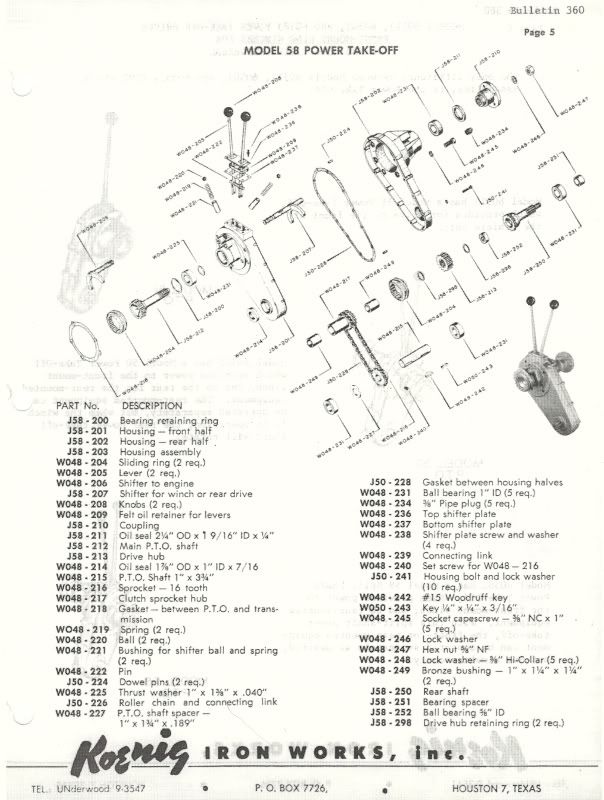

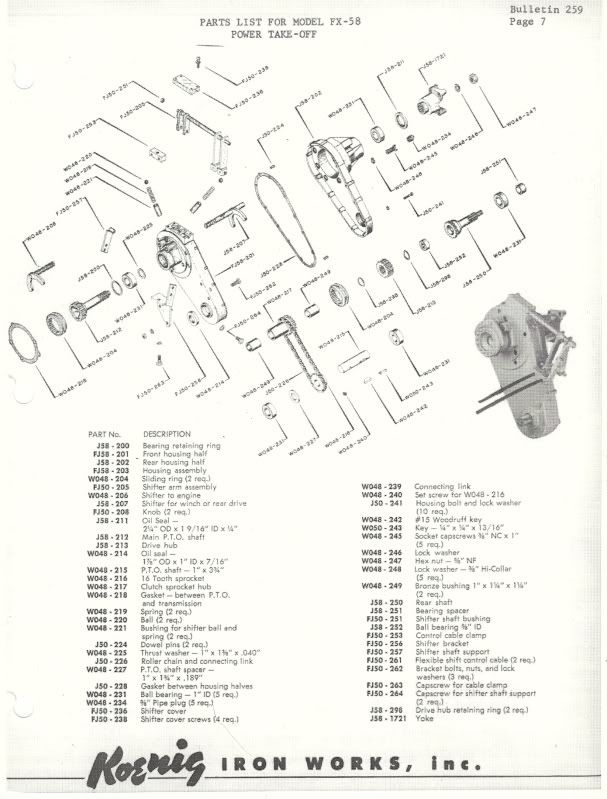

Oldtime has you on the right track. The twin stick PTO is a nice find. I scaned a few pages out of a koenig book so you can seee the parts in each pto. All you'll need to do is find or borrow a shift lever and you can make a couple of the levers without too much bother.

Posted Image

Posted Image
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

RobJ
Member
[ *  ]
Thanks for the good info. I had read somewhere that the 58 pto was for a cj5 so didn't know for sure if there would be clearance problems. I can pick this up for $300.00 but I don't think it has the cable shifters with it. I hope it does.
Offline Profile Quote Post Goto Top
