Horn Repair
Topic Started: Sep 25 2009, 07:20 PM (621 Views)
ParadigmCrime
Member Avatar
Member
[ *   *   *   *   *  ]
So I tried to fish a wire down the steering column, with no luck. I tried everything, and it would get stuck some place at the gear box.

Do I have to take apart the box to do it?

Im pretty adept at fishing wires, as I do it all the time in my work. So not really sure whats blocking my path down in there.
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
You need to fish the wire up through the steering box into the steering column. The steering box has a small 1/4" tube about 10 inches long connected to the bottom that sticks into the column.

awww,,,, here is an article that will help.

http://www.film.queensu.ca/cj3b/Tech/HornButton.html
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

hydratour
Member Avatar
Member
[ *   *  ]
i did fish mine with a hard wire with luck ., i had problem too. did you try the other way? it was easy . like you said when you are at the gear box someting get in the way but not when you start it at the gear box first good luck
Offline Profile Quote Post Goto Top

ParadigmCrime
Member Avatar
Member
[ *   *   *   *   *  ]
tried BOTH ways and no luck, something is IN there blocking the way. I used wire from a welder, which is very stiff and thin.
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
ParadigmCrime,Sep 26 2009
01:14 AM
tried BOTH ways and no luck, something is IN there blocking the way. I used wire from a welder, which is very stiff and thin.

Quote:



It's possible. I had forgotten. Mine was plugged with some if the cloth insulation and mud. It was a chore to clean out. I took 1/4 all thread rod in from the top and worked and cleaned. Air from the bottom.

Good luck fishin'.
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

jyotin
Member
[ *   *   *   *   *  ]
Go up from the bottom. Most likely the 'clog' is in the 1/4 inch tube. That tube extends upwards only about 10 inches or so. The end needs to be above the oil level in the steering box.

If you 'fish' wires at work you probably have access to a 12 inch drill bit -- say an eighth inch or so -- that'll take out the clog.

Do your level best not to damage the plug/tube assembly because they don't make them anymore and you will have to fabricate one. That isn't impossible, but it is a pain in the neck.
It's just my luck that something good is going to happen to me today.
54 - 3B - down on the farm
67 - cj6 - former state of Alabama vehicle
?? - cj5 T98a - made from spare parts - Ford tractor blue
?? - cj5 T98a - made from spare parts - Jeep green
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]

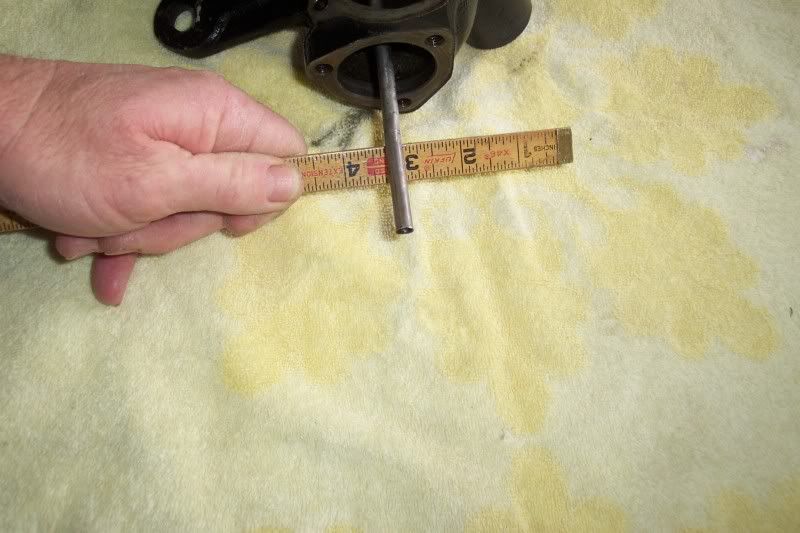

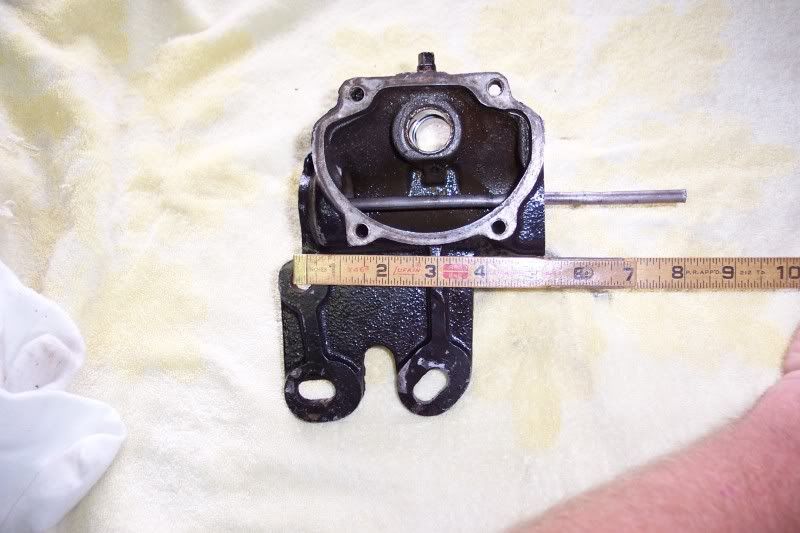

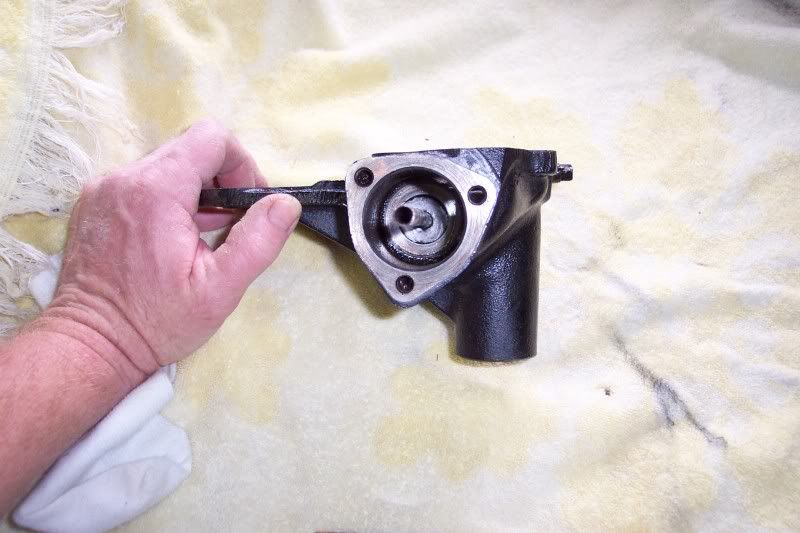

Here's a few pictures of "the tube" that's connected to the steering box for the horn wire.

Posted Image

Posted Image

Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
Posted Image

Posted Image
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

ParadigmCrime
Member Avatar
Member
[ *   *   *   *   *  ]
I wonder if my tube is missing, because I tried fishing from the bottom with no luck. The bottom is a big gooey hole filled with grease and grime.

Probably time to rebuild it.
Offline Profile Quote Post Goto Top
