Stupid Move Onmy Part; Possible engine damage
Topic Started: Sep 28 2009, 08:24 PM (723 Views)
Galen
Member
[ *   *   *   *   *  ]
I was trying to separate the head from the block on my 3b as I'm getting it ready for shop work. I could not budge the head I was stupid using a screw driver to wedge the head off when I discovered a lone head bolt inside the manifold holding the head on. I quicky removed it and it worked but... I scratched the mating surfaces one ding about .025 inches deep maybe. Is this fatal or can this be planed down smoth again? I though that the surfaces can be planed flat but is this cut too deep?
1954 CJ3B -Transport Yellow-
1953 B4 Dodge Power Wagon
1941 Dodge WC 1/2 ton military
1967 Plymouth Valiant
Culpeper, VA
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
Is the .025 gouge in the head or on the deck ?
The head can likely be shaved .025.
This depends on the head compression ratio you now have.
In fact it will likely be a benefit.
As that would raise the compression ratio.
You might gain around 2 or 3 HP.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

Galen
Member
[ *   *   *   *   *  ]
The gouge is on the deck the head appears ok and the cut in the deck does not extend all the way to the cylinders its about .5 cm long. never thought of this as a benefit. I know that one should never use a screw driver that way :(
1954 CJ3B -Transport Yellow-
1953 B4 Dodge Power Wagon
1941 Dodge WC 1/2 ton military
1967 Plymouth Valiant
Culpeper, VA
Offline Profile Quote Post Goto Top

HOGHEAD
Member Avatar
Old Jeep Fart
[ *   *   *   *   *  ]
Bet you will not do that again,, OUCH !! :rolleyes:
Dargan Md...
Death Before 2 Wheel Drive...
"On a Steel Horse I ride"
AMC Rules.
"Journey" not the Destination...
59 Cj3-b (married to a 74 Cj-5 frame & AMC running gear)
Posted Image
Willys Overland,,

My Build http://z4.invisionfree.com/CJ3B_Bulletin_B...?showtopic=2892
Offline Profile Quote Post Goto Top

jyotin
Member
[ *   *   *   *   *  ]
If the engine is going into the shop, then they can "deck" the block and you are good to go.

j
It's just my luck that something good is going to happen to me today.
54 - 3B - down on the farm
67 - cj6 - former state of Alabama vehicle
?? - cj5 T98a - made from spare parts - Ford tractor blue
?? - cj5 T98a - made from spare parts - Jeep green
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]

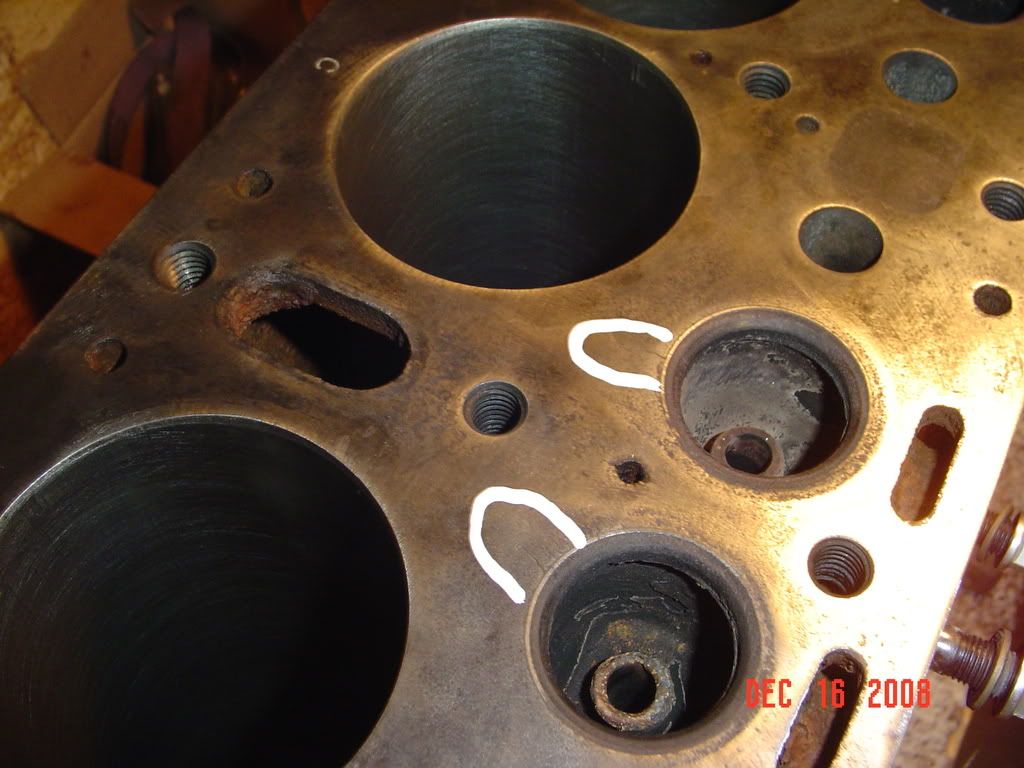

I'd let the machinist know about it but let him make the call on whether it needs the block machined. Look around the #2,#3 valve seats for small cracks in the block. Decking the block cost me $80 this past winter during a $100 crack repair. May not need anything done to it at all.

Posted Image

In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
Jeeper 50,

Thanks for posting those pics of the infamous Hurricane block cracks. (#2 + #3 exhaust)
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top
