Mixed-matched wheel-set
Topic Started: Sep 28 2010, 06:41 PM (2,474 Views)
Goose
Member Avatar
Member
[ *   *   *   *   *  ]

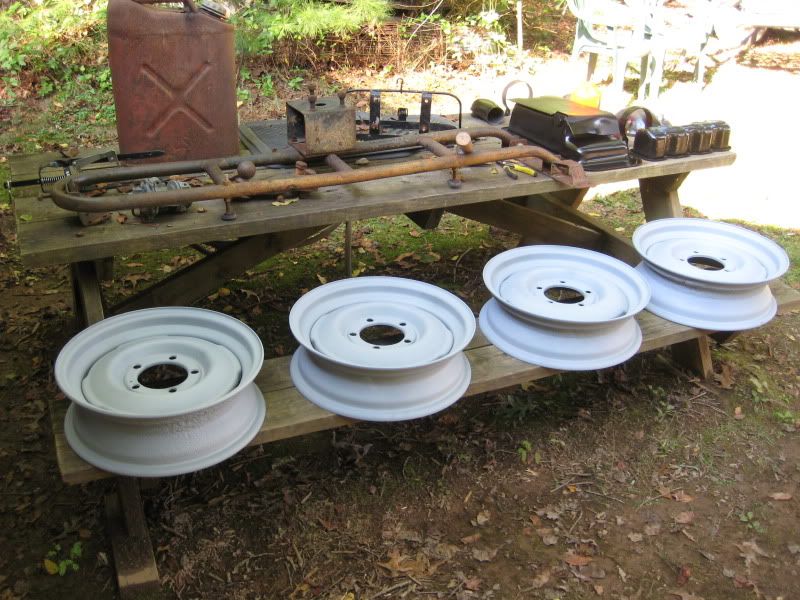

Well today as I painted my newly blasted, salvaged, donar wheels I noticed they weren't all the same. I thought as I flipped them some felt heavier than others. Sure enough, some are 4 1/2"s and some 5".

There are 3) 5's and 2) 4.5's. You can see the two middle rims in the pic are thinner. I'm thinking the two fronts and the spare should be the 5's and the two smaller 4.5 wheels on the back.

Posted Image
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
The 4.50 x 16 Kelsey Hayes is standard for all pre 1963 civilian Jeeps.
Kelsey Hayes produced different versions of 5.00 x 16" wheels for various Jeeps.
CJ-3B's could be fitted with an optional 5.00 x 16" heavy duty wheel.
This same wheel was standard on M606.
This particular heavy duty wheel can be identified by a single 1/8" diameter hole that is drilled through the mounting ring.
The common 4.50 x 16 " wheel weighs 19 pounds and is intended for 6.00 or 6.50 tires .
The optional 5.00 x 16 " wheel weighs 25 pounds and is intended for 7.00 x 16 tires.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
oldtime,Sep 28 2010
07:33 PM
The 4.50 x 16 Kelsey Hayes is standard for all pre 1963 civilian Jeeps.
Kelsey Hayes produced different versions of 5.00 x 16" wheels for various Jeeps.
CJ-3B's could be fitted with an optional 5.00 x 16" heavy duty wheel.
This same wheel was standard on M606.
This particular heavy duty wheel can be identified by a single 1/8" diameter hole that is drilled through the mounting ring.
The common 4.50 x 16 " wheel weighs 19 pounds and is intended for 6.00 or 6.50 tires .
The optional 5.00 x 16 " wheel weighs 25 pounds and is intended for 7.00 x 16 tires.

Yup, saw the 1/8th hole. All my tires are 7.00 x 16, you think that'll be okay to run the (now) undersized rims on the rear?
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
Lots of guys do it but here's some insight.......
My very first Jeep was a CJ2A that had 7.50 x 16 Goodyear Hi Miler Extra Grips (8 PR) mounted onto rusty 4-1/2 x 16 rims.
The rims were completely crushed in the process of dismounting those tires.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

Bob
Member Avatar
Bob
[ *   *   *   *   *  ]
I'm running 7.00x16 coker/firestones on my 4.5x16 rims and no problems yet, of course I'd not tried to dismount them.
Bob
1953 CJ3B
1965(?) CJ5
1949 Jeepster
1947 Cj2A
2004 Kubota l3400
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Bob,Sep 30 2010
06:52 AM
I'm running 7.00x16 coker/firestones on my 4.5x16 rims and no problems yet, of course I'd not tried to dismount them.

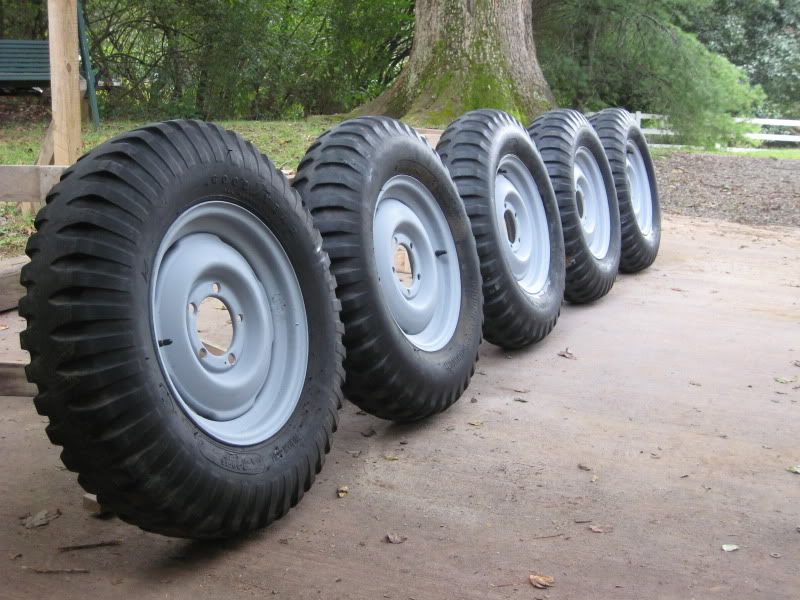

Well now I've got 3 different brands of tires mounted on 2 different size wheels! :D

Posted Image

We'll see how she rides. ;)
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

yjcanibul
Member Avatar
Member
[ *   *   *   *   *  ]
they look awesome

for whatever reason if i had 2 slightly wider rims i'd
most likely put them on the rear wheels

how long before you get them on the 3B - i cant wait
57 3B : big speedo / Hurricane / YF 938 SD / IAY-4012 / T90 / D18 / 5.375 final drive / open diffs / Firestone 6ply Military NDCC / 12v Delco SI alt / Kayline Top / venting windshield / tub patched / "still fixing leaks one at a time"

89 wrangler : h/duty axles + 5spd / 200+hp 4.2L / arb locked / multiport fuel inj / warn hubs+winch / 1/4 mil km / fishing+trail riding / gets me to work
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
They should ride the same either way beacuse the wheel set is identicle.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
yjcanibul,Sep 30 2010
07:43 PM
for whatever reason if i had 2 slightly wider rims i'd
most likely put them on the rear wheels

how long before you get them on the 3B - i cant wait



Gonna go with them on the front, it have to be better to have them where the load and steering matters most I'd think. The 3B is waiting for brakes and wheel bearings, hopefully soon. I've just been doing what money and limited skills will allow until someone helps with the hard stuff. I've found the guy too, and as soon as he can he's coming over to take a look.
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

div4gold
Member Avatar
Member
[ *   *   *   *   *  ]
oldtime,Sep 28 2010
04:33 PM
The 4.50 x 16 Kelsey Hayes is standard for all pre 1963 civilian Jeeps.
Kelsey Hayes produced different versions of 5.00 x 16" wheels for various Jeeps.
CJ-3B's could be fitted with an optional 5.00 x 16" heavy duty wheel.
This same wheel was standard on M606.
This particular heavy duty wheel can be identified by a single 1/8" diameter hole that is drilled through the mounting ring.
The common 4.50 x 16 " wheel weighs 19 pounds and is intended for 6.00 or 6.50 tires .
The optional 5.00 x 16 " wheel weighs 25 pounds and is intended for 7.00 x 16 tires.

Oldtime, I haven't been around here long but you are an encyclopedia on ' Jeep'. So , could you tell me something about the wheels on my '64 3B. I believe that the 5 wheels that I have that came with the Jeep to be original. Can't be 100% sure on that though. All 5 match each other and are 15 inch. I've read so much stuff about the 3B I can't even begin to remember where it all came from. I'm pretty sure that the 15 inch were an option on the '64, can you shed any light on that?
Old retired fart living in Ione, WA. I have a 1964 CJ3B. Recently overhauled original motor, transmission and overdrive. 11" Bronco drum brakes on all 4. Needs a new coat of paint but that will have to wait till next summer, it's next summer and I'm working on that now :) UPS & FEDEX will continue to profit :)
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
Factory Service Standards changed from year to year.
The 4-1/2" x 15" KH wheels became standard on all CJ's in 1963.

I thought I had an in depth post describing over a dozen of the varios KH wheels.
I'll try to see if I can find that data.
This forum is hard to search and the Willys Group Index really needs to be implemented somehow.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
Goose
I'm running 700-16 NDTs on the 4.5 rim and use 18lbs of pressure to keep them wearing evenly.
In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
jeeper50,Jan 9 2013
05:36 AM
Goose
I'm running 700-16 NDTs on the 4.5 rim and use 18lbs of pressure to keep them wearing evenly.

Thanks Jeeper but look at the date of this thread, I've long since moved past that wheel/tire set.
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Galen
Member
[ *   *   *   *   *  ]
Speaking of wheels, I have 15 inch wheels on my 3B. It was mentioned that the Jeep came standard with 16 inch wheels. Were the 15" optional are they rare, any advantages or disadvantages with 15 over 16 inch?
1954 CJ3B -Transport Yellow-
1953 B4 Dodge Power Wagon
1941 Dodge WC 1/2 ton military
1967 Plymouth Valiant
Culpeper, VA
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
:huh: I figured that you might be getting a second set ready for the road. I have my NDTs and a set of 31-1050s on black wheels for the trailrides too. I figured everyone had or has two sets LOL :D
In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top
