Rebuild generator or switch to altenator
Topic Started: Aug 5 2011, 09:51 PM (1,594 Views)
Goose
Member Avatar
Member
[ *   *   *   *   *  ]
I've got the original generator in my '63 and it's starting to make some noise. As I consider having it rebuilt I wonder if it's not more sensible to switch it out for an altenator.
What's the general consensous here, stay with what works or go modern?
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Felonious.Monk
Member
[ *   *   *   *   *  ]
Stay with what works.

Do it yourself.

Learn something.

Keep it simple.

??
Pete

1953 CJ3B with Warn Overdrive
1988 Jeep Wrangler
Offline Profile Quote Post Goto Top

Rus Curtis
Member
[ *   *   *   *   *  ]
Goose,
I think a 'that depends' answer is appropriate. I have always been an advocate of rebuilding if possible. You already know the part fits so just fix it and no problems. No additional brackets, no alignment issues, no re-drilling, no adjustments to the wiring or gauges. As FM states, keep it simple.

However, if your master plan includes driving lamps, a radio, CB, electric winch or other add-ons that would tax the original charging system then perhaps the alteration would be appropriate.

Rus Curtis
Alabama
'54 CJ-3B "Green Gruntt"
Bantam T3-C
Offline Profile Quote Post Goto Top

P8106jr
Member Avatar
Member
[ *   *   *   *   *  ]
Replacing the bearings and brushes are easy. Just have to carfull when taking it apart and putting back together. You have to remember you are dealing with 50 year old wiring and it can be brittle
Jamie Powers
1963 CJ3B
1947 Bantam Trailer
1973 CJ5
Houston TX
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Thanks for the inspiration to rebuild it guys. Any idea where to find a rebuild kit? All I can find are newly rebuilt intire units but not parts ala cart.
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

dos equis
Member
[ *   *   *   *   *  ]
your local napa store should be able to get what you need a brush set front bearing and rear bushing
1953 willys cj3b,1998 4.3 chev vortec v6 fuel injected,1965 sm 420 trans,11.5 gm clutch, 538 diffs,11x2 brakes,950x33x15 super swampers on 15x8 rims with 2 inch backspace,saginaw power steering,
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
dos equis,Aug 6 2011
01:35 PM
your local napa store should be able to get what you need a brush set front bearing and rear bushing

Thanks dos equis!
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Went to replace the bearing and bushing and the rear had spun, can't find a rear housing anywhere. Idea's?
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Galen
Member
[ *   *   *   *   *  ]
Try Midwest Willys ask for Joe Sheets

I bought a rebuild-able gerator from them cheap
1954 CJ3B -Transport Yellow-
1953 B4 Dodge Power Wagon
1941 Dodge WC 1/2 ton military
1967 Plymouth Valiant
Culpeper, VA
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
I took the "other" approach, swapped over to a one wire alternator. I had just bought a new 6 volt battery and headlights, so when my geny couldn't keep my battery charged I built a mount from drawing I had gotten from the guys over at the ECJ5 page. Bought a $40 alternator from Oriellys, a 6volt alternator conversion kit from ebay $19, bolted it on and never looked back. If yours is already 12v it's even easier, oh yeah picked up a used pulley for the 5/8 belt for $10.

http://cgi.ebay.com/ebaymotors/Delco-10SI-...=item5193a39ce1

mount here;

http://www.earlycj5.com/forums/showthread....or%20conversion
In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]

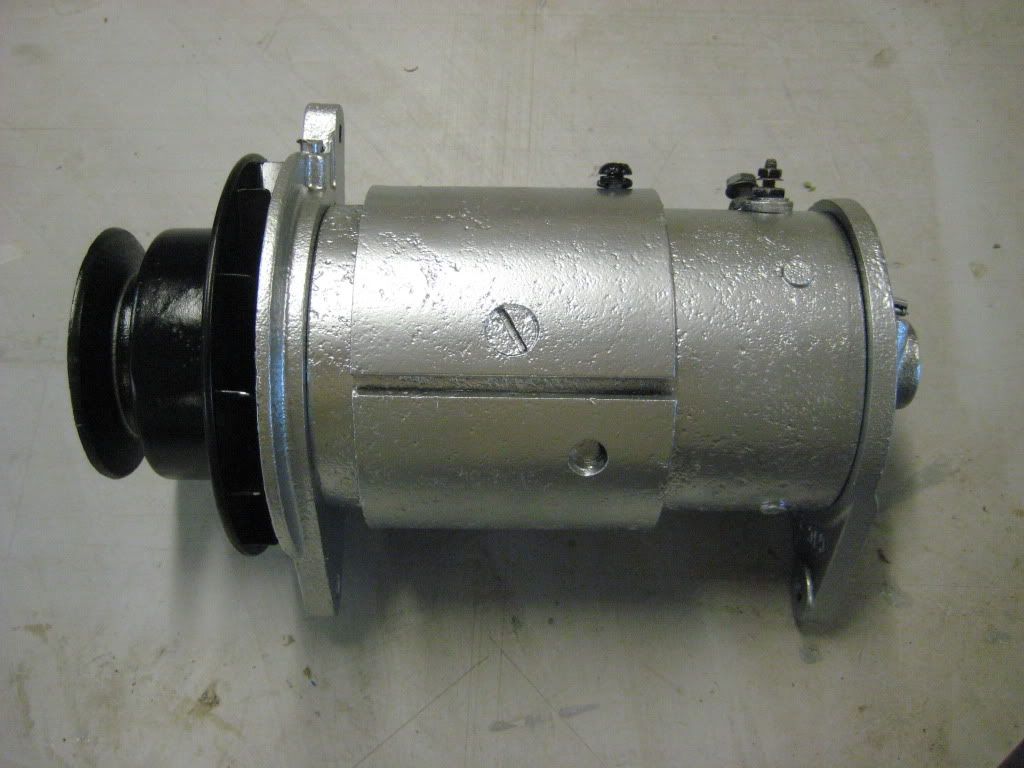

Thanks for all the help fellas. I ended up taking the generator to an altenator repair shop and they did a jam-up job
by cannibalizing mine and another 60's era generator they had from a Chrysler along with new modern bearings. All for $120.

Posted Image

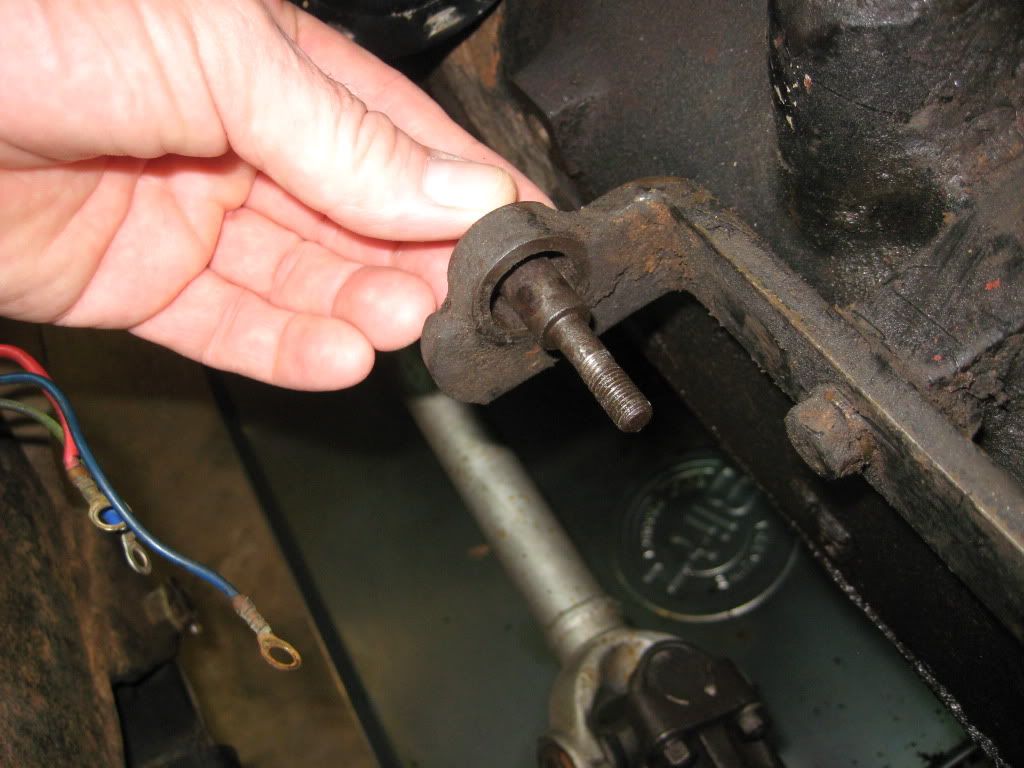

I feel good about that but check this out, having never had the thing off the vehicle before I never noticed these pivot shoulder bolts being so undersized.
This is wrong, right? Apparently someone had the generator off before and used different sized bolts than were stock.
Or, there is supposed to be bushings slid onto the shoulder to make up the slack, maybe?
Cuz the pics of new bolts on KaiserWilly and Walcks look the same size as what I've got.

Posted Image
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Felonious.Monk
Member
[ *   *   *   *   *  ]
There are bushings that make up the space.

I just took my generator off, and found my bushings destroyed.

I would imagine Walcks has them. Or maybe check your local hardware store for something that fits.

Thats a fine looking generator there.

Let us know how it works out with the bushings.

Good Luck
Pete

1953 CJ3B with Warn Overdrive
1988 Jeep Wrangler
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Felonious.Monk,Aug 15 2011
07:30 PM
There are bushings that make up the space.

I just took my generator off, and found my bushings destroyed.

I would imagine Walcks has them. Or maybe check your local hardware store for something that fits.

Thats a fine looking generator there.

Let us know how it works out with the bushings.

Good Luck

Thanks Monk, I'll try the local sourses first to cut time.

The shop painted the generator all black but I rattle-canned it
silver so you'd see it better once installed.
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Rus Curtis
Member
[ *   *   *   *   *  ]
The bushing is $3 at Walck's


Posted Image


Try to get parts that fit and you'll be happier with their performance.
Rus Curtis
Alabama
'54 CJ-3B "Green Gruntt"
Bantam T3-C
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
Go with the walcks bushings. That geny sure is purty!
In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top
