crankshaft pulley; Can it be salvaged
Topic Started: Aug 24 2012, 01:39 PM (682 Views)
jking
Member
[ *   *   *   *   *  ]

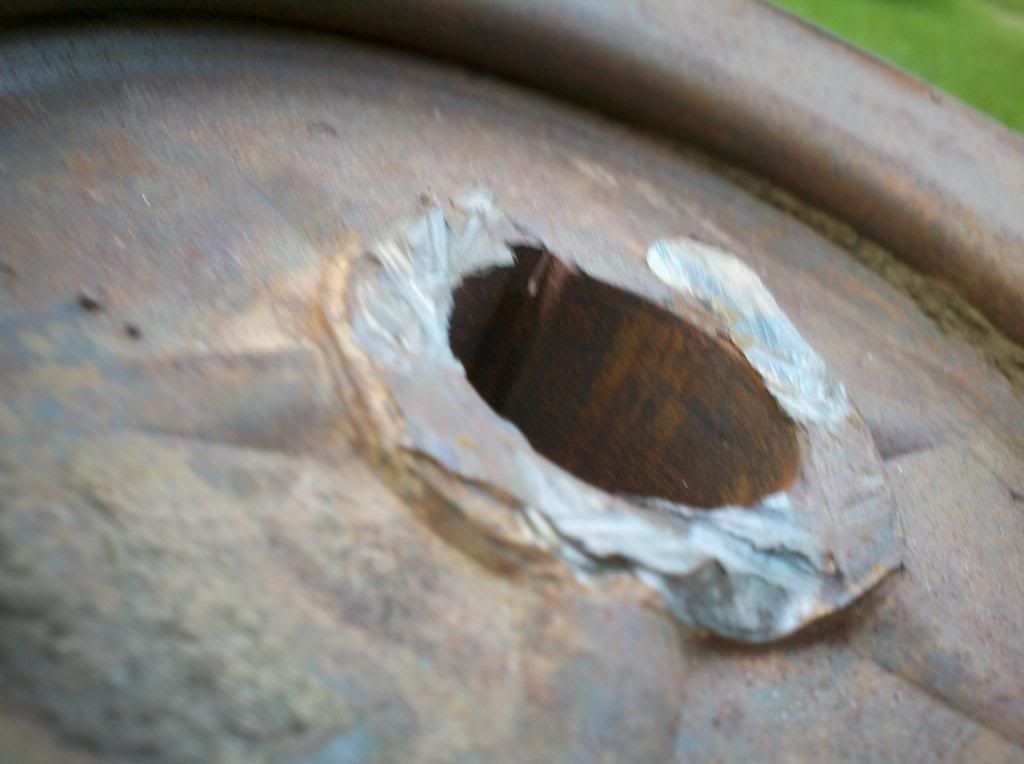

One of the PO's apparently lost the nut and welded the pulley on. Do you think that that ragged edge can be cleaned up or should I go and buy ANOTHER! replacement part. The UPS man has been here so much, he checks my progress every day when he shows up!

Posted Image

Posted Image
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case.

Northest Ohio
Offline Profile Quote Post Goto Top

Rus Curtis
Member
[ *   *   *   *   *  ]
Can it be? Pretty much anything can be machined and repaired but at what cost?

Would it be true and flat? Would it be the correct thickness?

I'd suggest replacing it for sake of ease. Harry Sheets for a used original or the usual vendors for aftermarket.

PO's: a distinct subculture that has definately left its mark!!!
Rus Curtis
Alabama
'54 CJ-3B "Green Gruntt"
Bantam T3-C
Offline Profile Quote Post Goto Top

spm1us
Member
[ *   *   *   *   *  ]
Hello Oldtime, the pulley's bore and keyway look good. Do you have any friends/business associates/machinists with a lathe or mill? If so, the pulley could be easily spotfaced and trued up. Personally, I prefer original parts to replacements, unless they are NOS USA made goods. Just my .02 worth - good luck with your project, Sam Michael Jr, Jax, FL
Offline Profile Quote Post Goto Top

jking
Member
[ *   *   *   *   *  ]
My tendency was to just replace it. However, Sam you make a good point - I've got a good friend who is a machinist at a tool and die maker. I'll see what he says.

Oh and BTW - the crank wasn't salvagable.

Thanks,

John
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case.

Northest Ohio
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
I definately prefer rebuit original parts over new replacement parts.
I'm pretty darn good with a disk grinder.
I would simply shove a small disk down in there and get it flat.
It only butts up to a large nut. It's not a close tolerance fit.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

Daryl
Member Avatar
Member
[ *   *   *   *   *  ]
Should be pretty easy to clean up. Thickness isn't an issue due to a nut tightening up on it. If the back was messed up it would be a different story. If it runs true then run it. PM me if you need one.
Lotsa Jeeps, and a few extra parts
In Bonney Lake, Washington
Always willing to look at a Jeep for you BEFORE you buy it to check it out.
Offline Profile Quote Post Goto Top

jking
Member
[ *   *   *   *   *  ]

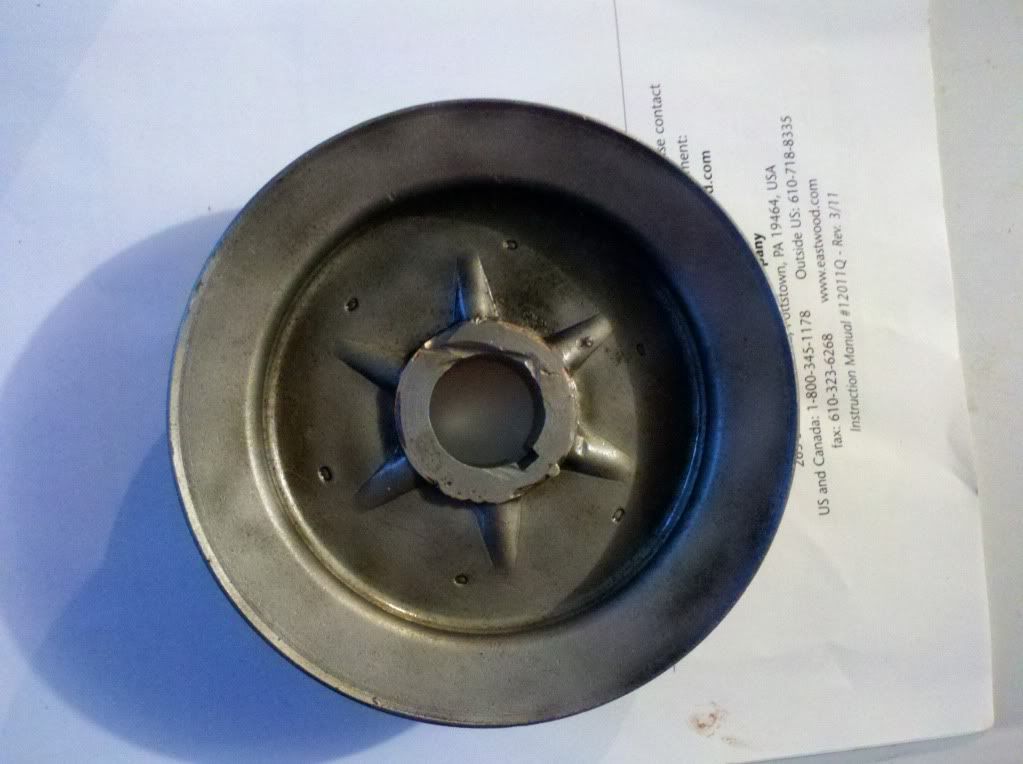

I think this should be good enough

Posted Image

Posted Image
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case.

Northest Ohio
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
Problaby be just fine.
Keep a watch on the crank nut.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top
