| Correct crankshaft pulley nut? | |
|---|---|
| Tweet Topic Started: Sep 12 2012, 08:37 PM (271 Views) | |
| Felonious.Monk | Sep 12 2012, 08:37 PM Post #1 |
|
Member
![]() ![]()
|

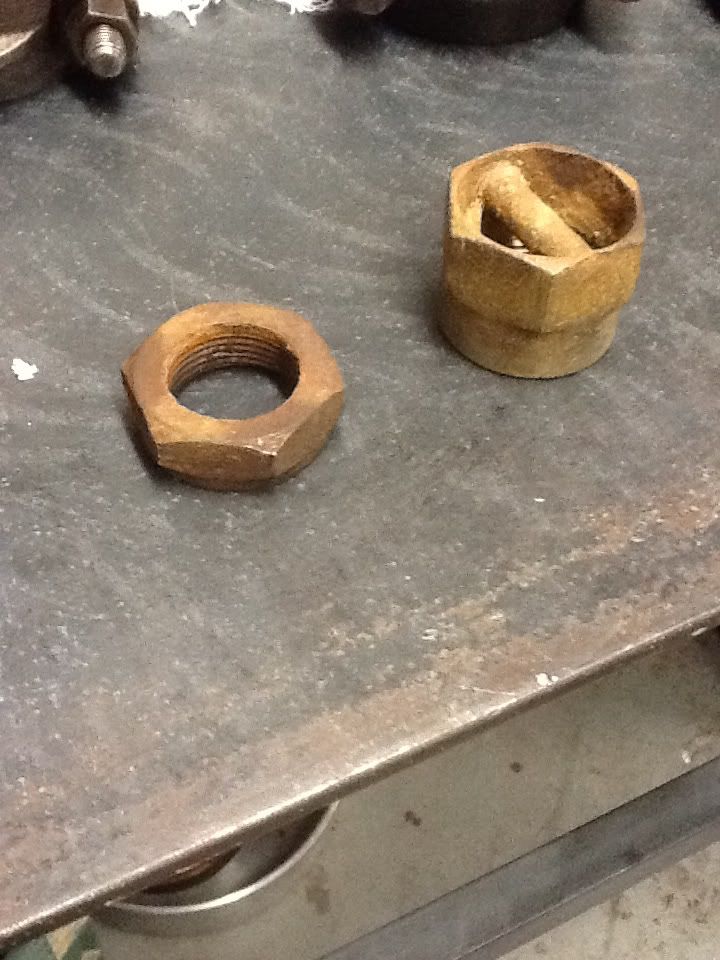

Hello all, I have two different crankshaft pulley nuts and dont know which one is correct for my year jeep. Is there an early or late design?? I checked walcks website be they only list one type of nut. The short one. The engine I'm assembling is from 1955, my jeeps a 53. Which one is correct? ![]() Thanks. |
|
Pete 1953 CJ3B with Warn Overdrive 1988 Jeep Wrangler | |
![]() |
|
| oldtime | Sep 12 2012, 08:42 PM Post #2 |
![]()
MODERATOR
![]() ![]()
|
Both are correct. The larger nut is for use with a hand starting crank. Low compression ratio allows hand cranking. The hand cranks were mostly used on L-134 Go-Devils. The shallow nut is standard. |
|
Currently building my final F-134 powered 3B . Rock Crawler using factory parts from the Willys Motors era (1953-1963) http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new | |
![]() |
|
