"D" rings and shackles; where to get them
Topic Started: Sep 19 2012, 07:09 PM (983 Views)
Goose
Member Avatar
Member
[ *   *   *   *   *  ]
I'd like to put a couple of these on my front bumper but having a hard time finding any. Thoughts?

Posted Image
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Ratchet
Member
[ *   *   *   *   *  ]
The shackles can be found at most good tractor/farm supply stores. The "D" rings will need to be made.
Georgetown, IN
A little less rust and a 53 CJ3B
Offline Profile Quote Post Goto Top

Bob_webber
Member Avatar
Member
[ *   *   *   *   *  ]
goose, get off of my wavelength. :lol:
i plan to find a junk/bent bumper and cut both sides short.
and i too plan to put 2 d ring shackles on the front of the bumper.
yep i can picture it now, a nice big winch with synthetic rope, and 2 shiny shackles
53 3b, early cj5 frame (hurricane),2.43 ratio t case 26 tooth with 1 1/4" case (my own creation), late 60's c5 ross steering box, all range od, parts from a welder generator, and parts from about 9 different jeeps and counting. my every last penny and ounce of patients creates what we call the FrAnken B, the jeep that never was

bob, north east Ohio
Offline Profile Quote Post Goto Top

RamblinCJ3B
Member
[ *   *   *   *   *  ]
Ebay! If they ain't there.....they don't exist!
Eddie
Clovis,Ca
1956 Willys PU
1962 USN CJ3B Stock
1971 Hurst Jeepster 350
1972 Commando 4.0 HO
1972 Commando I6 258
1975 J20 401
Offline Profile Quote Post Goto Top

Daryl
Member Avatar
Member
[ *   *   *   *   *  ]
R & P has them. Great people and a wealth of info. It is hunting season, so be patient with them.

http://shop.rp4wd.com/product/latch-bracket
Lotsa Jeeps, and a few extra parts
In Bonney Lake, Washington
Always willing to look at a Jeep for you BEFORE you buy it to check it out.
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Thanks guys. I wanna do the weld-on type vs the bolt-on so I think I'll get the Clevis rings at a tractor supply place and have the rings fabbed at my local mach shop.
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Duffer
Member Avatar
Member
[ *   *   *   *   *  ]
The problem I have with most of the parts houses, including Grainger, is that you really don't know what you are buying anymore. I like Crosby-known quality and am willing to pay extra to get it. Quadratech has some of their stuff but there are a lot of other vendors.
http://www.bairstow.com/department/shackles-19.cfm?killnav=1

I used 7/8" shackles on my 3B and put a stainless belleville spring washer (McMaster-Carr items) on both sides so the shackles will still move but don't rattle. I made my own weld-on mounts but do recall seeing those available off-the-shelf someplace-just can't remember where.

Make sure you get shackles that are up to your (or buddies) winch pull. I would consider 8k lbs (4T) rated the minimum.
John, SW Montana

55 CJ 3B, transmake, fiberglass/aluminum tub/hood/fenders, 381 sbc, AGE M22W trans, "super" D18/Teralows & Warn OD, D44/ARB/Dutchman front & full float D44/Powrloc rear axles-4.10's, Holbrook springs, 4 wheel power discs, Saginaw PS, Warn 8274

68 CJ5, stock 225, T86AA, D18w/ Warn OD, D27A & stock D44 (heavy duty housing)-4.88's, 11" brakes, stock Ross box, Belleview 6000 (a close to stock vehicle, including the Whitco top)
Offline Profile Quote Post Goto Top

johnrb
Member Avatar
Member
[ *   *   *   *   *  ]
Goose

Thanks guys. I wanna do the weld-on type vs the bolt-on so I think I'll get the Clevis rings at a tractor supply place and have the rings fabbed at my local mach shop.

Interestingly, most of the off-road parks don't allow welded D-rings. They must be bolted with grade 8.
And yet, many factory D-rings are welded. Go figure.
John Burch - west burbs of Chicago
1946 2A - now I have one older than me
1949 - me - no longer older than all my vehicles
1954 3B - mostly stock - fun driver and snow plowing
1957 - 6 cyl Station Wagon - hope for the future

past Willys
1954 3B - no tub | 1959 3B - engine in pieces in a box

past addiction - VW
1969 Bus | 1970 Westfalia Camper | 1984 Westfalia Camper
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]

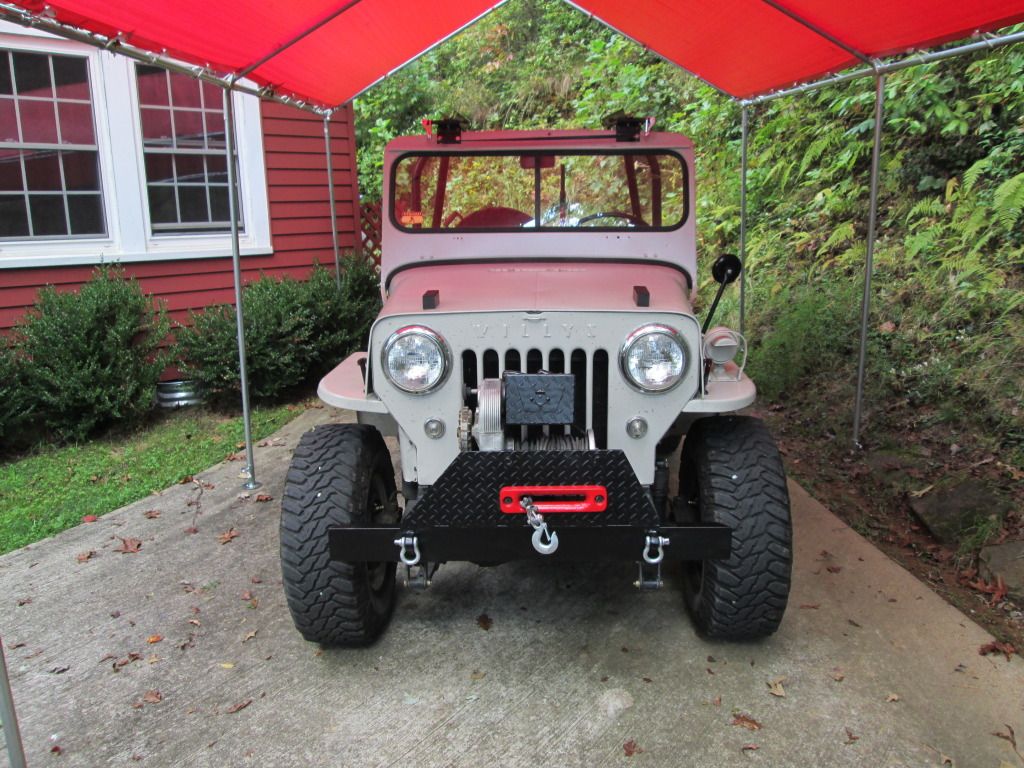

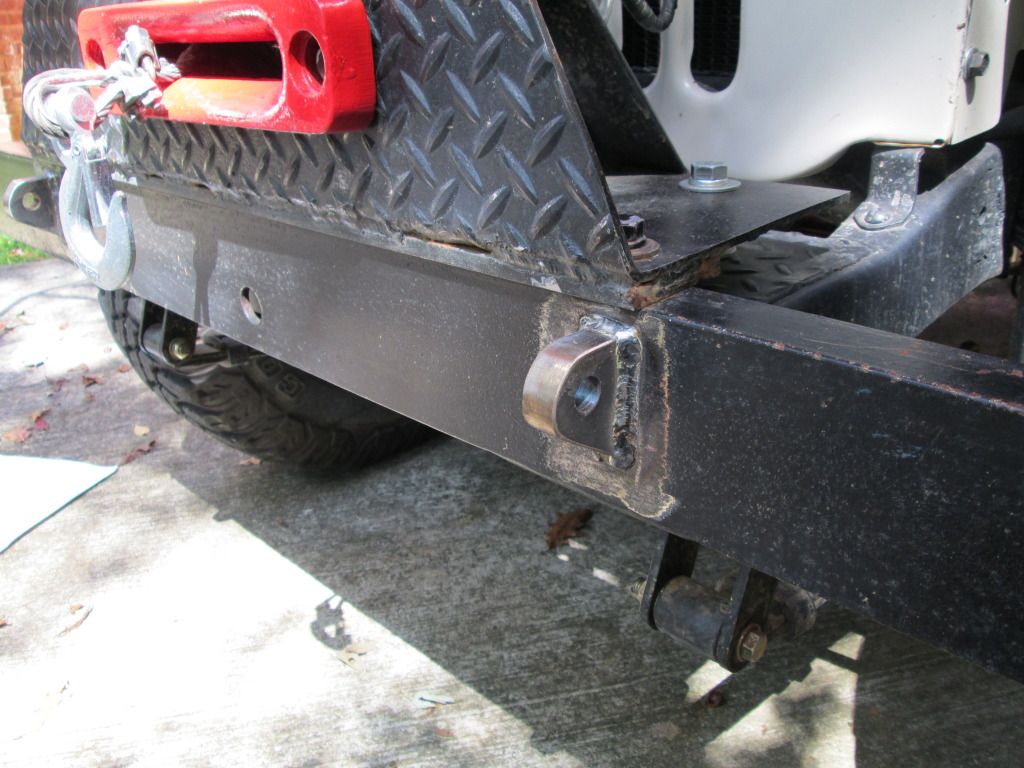

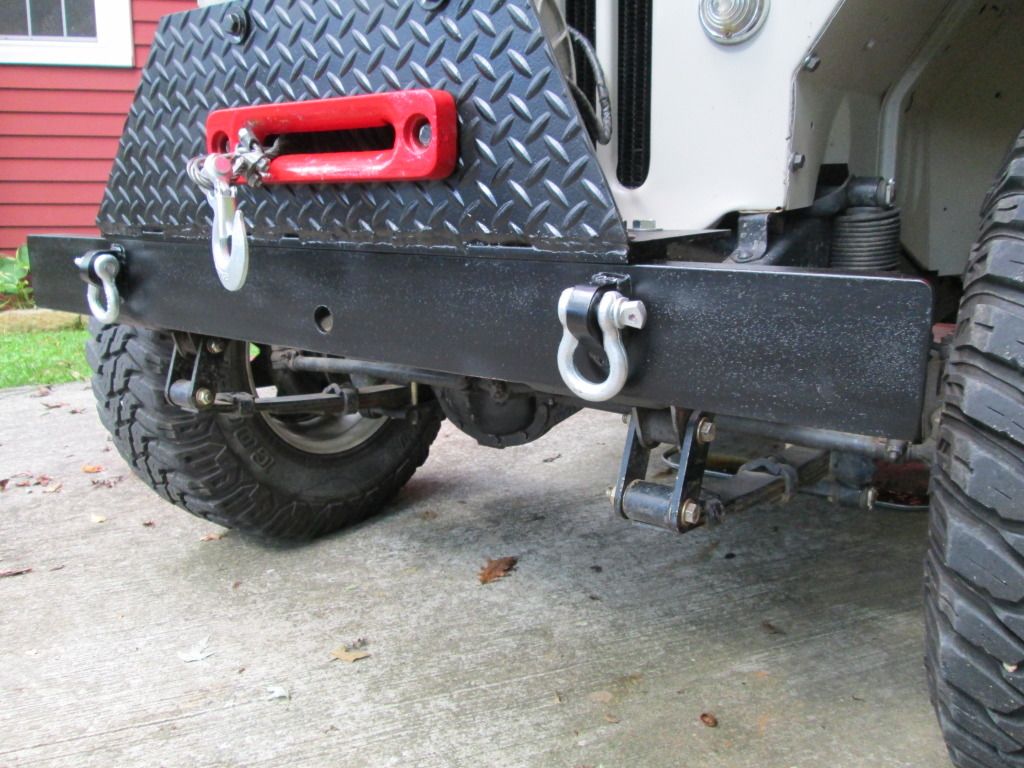

Done!

Posted Image

Posted Image

Posted Image
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Don
Member Avatar
Member
[ *   *   *   *   *  ]
They look good welded on the front. Where did you get them?
Don Norris
Southeast, NC

1953 CJ3B
1959 Jeep Pickup
195? M100 trailer
~~~~~~~~~~~~~~
The trail never ends
~~~~~~~~~~~~~~~
If lovin' Jeeps is wrong,
I don't wanta be right.
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Don,Sep 20 2012
07:19 PM
They look good welded on the front. Where did you get them?

Shackles were from Lowes, $8/ea and a local machine shop made/welded the bumper parts for me. Although I knew the guy and expected to be treated fairly, he over-charged the crap outta. So much so I'm embarresd to say how much. :(
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

Duffer
Member Avatar
Member
[ *   *   *   *   *  ]
Goose,Sep 21 2012
06:58 AM
Don,Sep 20 2012
07:19 PM
They look good welded on the front. Where did you get them?

Shackles were from Lowes, $8/ea and a local machine shop made/welded the bumper parts for me. Although I knew the guy and expected to be treated fairly, he over-charged the crap outta. So much so I'm embarresd to say how much. :(

I don't know what you paid, but just thinking how long it would take me to lay out, drill, cut, and finish those in a one-off project, I'm going to guess at least an hour. My time isn't usually worth too much, but any machine shop will be at least $100/hr and some quite a bit more. I don't think the guy that made them probably thinks he charged too much and why it is almost always best to find something off-the-shelf. A lot available online (but I like the looks of yours better).

http://www.jcroffroad.com/mm5/merchant.mvc...ct_Code=DIY-DRT

http://www.comp4x4.com/Heavy-Duty-Weld-on-...unt-d-ring.html

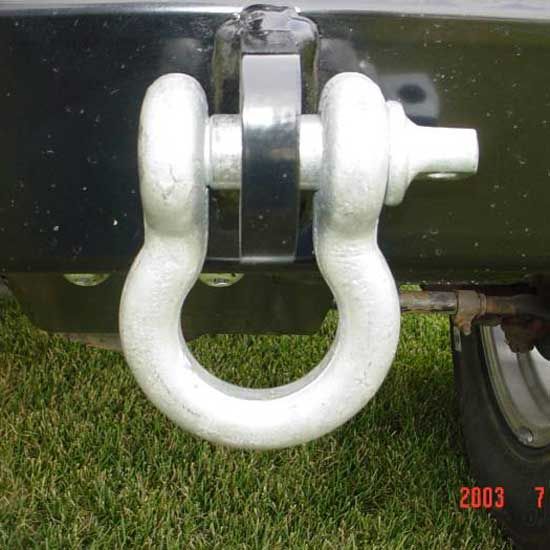

These are the one's on the butt of my 3B-1" stock
Posted Image
John, SW Montana

55 CJ 3B, transmake, fiberglass/aluminum tub/hood/fenders, 381 sbc, AGE M22W trans, "super" D18/Teralows & Warn OD, D44/ARB/Dutchman front & full float D44/Powrloc rear axles-4.10's, Holbrook springs, 4 wheel power discs, Saginaw PS, Warn 8274

68 CJ5, stock 225, T86AA, D18w/ Warn OD, D27A & stock D44 (heavy duty housing)-4.88's, 11" brakes, stock Ross box, Belleview 6000 (a close to stock vehicle, including the Whitco top)
Offline Profile Quote Post Goto Top

Goose
Member Avatar
Member
[ *   *   *   *   *  ]
Well since ya put it that way, I guess the buck and a half he charged me sounds more reasonable.
He spent well over an hour on 'em and did a little spot welding on another part of the front bumper too.
1963 CJ3B
Roaming the woods of WNC
Offline Profile Quote Post Goto Top

jeeper50
Member Avatar
ol' skool jeeper jeff
[ *   *   *   *   *  ]
looks good Goose, when you coming over to Choccoloco for some fourwheeling?
In the land of the blind... the one eyed man is king
Texan at heart, Georgian by paycheck

'53 CJ3B, F134, 12v alternator, lockrights, Hot-Spark electronic module,11"self energizing brakes, Belleview winch, Beachwood summertop, OD color, built to honor all Veterans of this great country


Kayaks- Hobie Revo 13, Hobie Outback 12' both ready for the salt...
Offline Profile Quote Post Goto Top
