"safest" placement of tow bar brackets?; with photos
Topic Started: Oct 4 2012, 09:15 PM (1,977 Views)
Larry (TX)
Member
[ *   *   *   *   *  ]
Greg - photos of the set-up on my '53 3B e-mailed to you this morning.
Larry Steed
Pearland, Texas
'53 Willys CJ3B
'52 Willys M38
'86 Chevy M1009 CUCV (K5 4x4 Military Blazer)
M100 1/4 ton jeep trailer
M416 1/4 ton jeep trailer (2 ea.)
M101 CDN 1/4 ton jeep trailer
Offline Profile Quote Post Goto Top

gianas
Member
[ *   *   *   *   *  ]
Larry, thank you for posting photos. You have an elegant set up, ready for any challenge.

Duffer, I'll do the bead you suggested.

Overtime, I mean "Oldtime," Agreed.

Rus, Glad you told the jeep, pull-point story. What you described brought back memories involving a CJ-5 in 1965 and the "pulling point" on an Edsel. If you want to "hear" that story, let me know.

greg

Greg Gianas
Redmond, Washington
1954 3B, daily driver; old, beat up but still strong,
last vehicle I'll probably ever own,
purchased May 2012;

first vehicle and jeep owned: back in 1965-66 (1965 CJ-5, Hurricane 134 engine); no better memories
Offline Profile Quote Post Goto Top

williams3b54
Williams3B54
[ *   *   *   *   *  ]
GREG, I HAVE BEEN TRYING TO GET THE PICTURES OF MY TOW BAR ATTATCH POINTS ON THE PHOTOBUCKET PAGE FOR TWO DAYS, I THINK I MIGHT HAVE IT NOW.

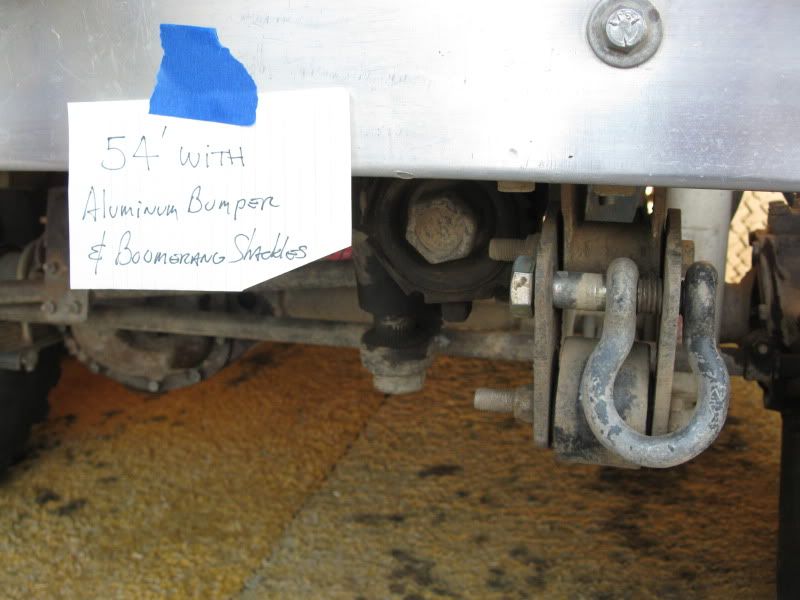

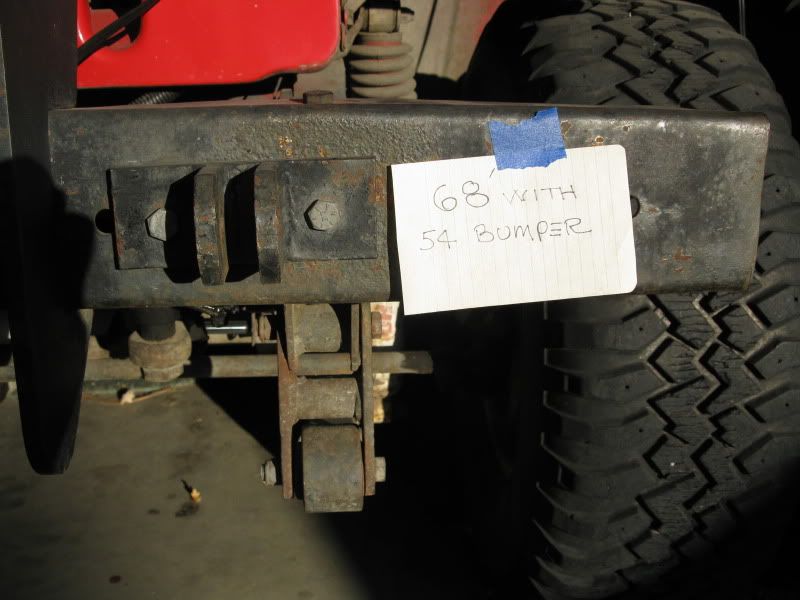

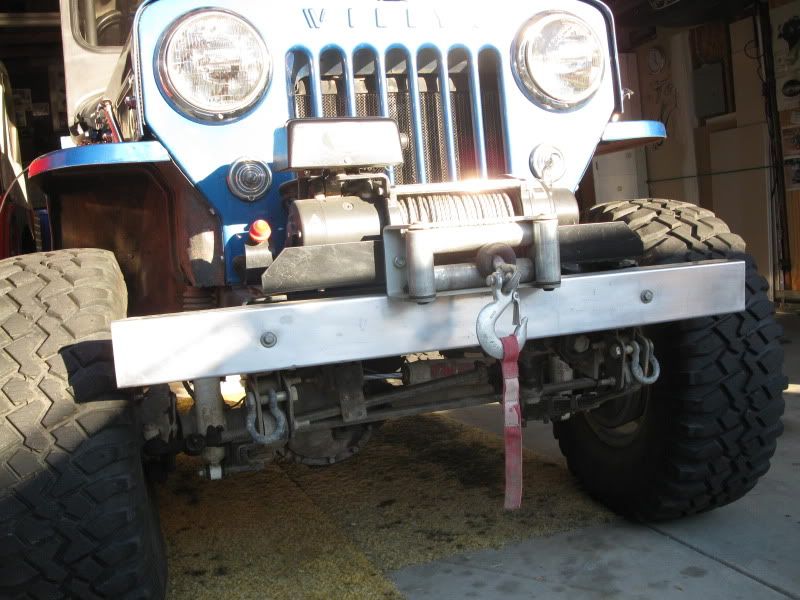

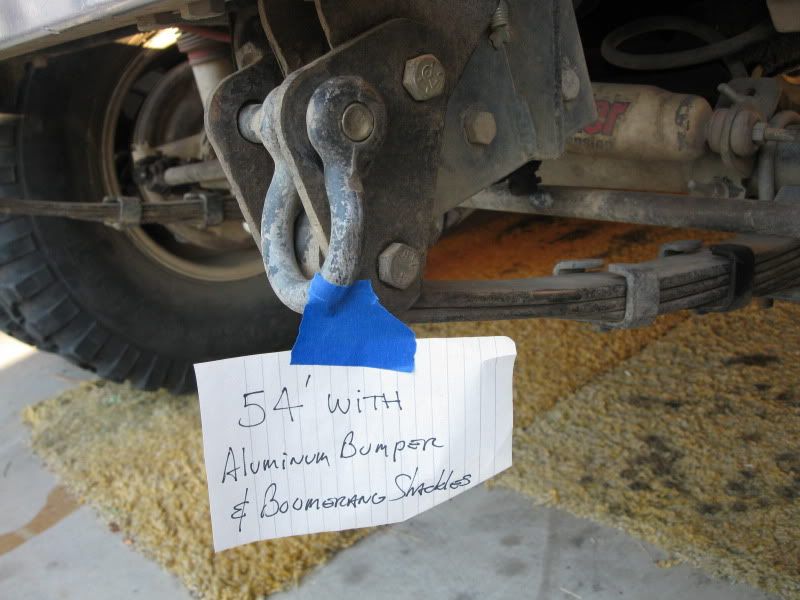

A PICTURE OF THE FRONT OF MY 54. A PICTURE OF MY BOOMERANG SHACKLE ( NOT ORIGINAL ) A FRONT PICTURE OF THE 54 SHACKLE. A PICTURE OF THE 1968 CJ-5 SHACKLE. I HAVE CUSTOM BUILT THE SHACKLES.
MY EARLIER BLOG MEANT TO SAY 1/4' STEEL. AND MY FRAME RAILS HAVE A BENT END PART OF THE FRAME RAIL THAT HAD THE RIVET ( LIKE YOURS ) RIVETING THE BUMPER THRU THE FRONT AND ONE BOLT EACH TOP AND BOTTOM INTO THE FRAME RAIL. THE RIVETS HAVE BEEN GROUND AWAY AND GR. 5 BOLTS NOW HOLD THE BUMPER AND IN THE CASE OF THE 68 THE TOW BAR ATTATCH POINTS. ON THE 68 THE ONE BOLT IS IN-LINE WITH THE FRAME RAIL AND THE SECOND BOLT IS TO THE INSIDE OF THE FRAME RAIL AND ONLY THRU THE BUMPER.
ON THE 54 I DESIGNED THE BOOMERANG SHACKLES TO BE ABLE TO ATTATCH MY TOW BAR DIRECTLY IN-LINE WITH THE SPRINGS. WHAT YOU SEE THERE NOW IS A SHACKLE FOR TRAIL EXTRACTION WHEN NEEDED.
Posted Imageom/albums/l100/jeepersthree/IMG_1634.jpg[/IMG] Posted Imagecom/albums/l100/jeepersthrePosted Imagee/IMG_1633.jpg[/IMG]Posted Image

Dick W. Spokane Wa.
1954 CJ-3B
Semi-modified for trail riding in the Northwest.
See photos on CJ-3B page owners photos 1954.
1968 CJ-5/1975 231 odd fire V-6/ many other mods. ordered new from Toledo 1968.
Offline Profile Quote Post Goto Top

williams3b54
Williams3B54
[ *   *   *   *   *  ]
????? I posted four pictures and I only see two, where did the other two go???
Dick W. Spokane wa.
1954 CJ-3B
Semi-modified for trail riding in the Northwest.
See photos on CJ-3B page owners photos 1954.
1968 CJ-5/1975 231 odd fire V-6/ many other mods. ordered new from Toledo 1968.
Offline Profile Quote Post Goto Top

Rus Curtis
Member
[ *   *   *   *   *  ]
williams3b54,Oct 14 2012
10:59 AM
????? I posted four pictures and I only see two, where did the other two go???
Dick W. Spokane wa.

Dick,
It may have exceeded the amount allowed per post. Try posting a second entry to show the other two pics.

Note: I always preview to see what my post will look like - especially with images.
Rus Curtis
Alabama
'54 CJ-3B "Green Gruntt"
Bantam T3-C
Offline Profile Quote Post Goto Top

williams3b54
Williams3B54
[ *   *   *   *   *  ]
O.K. I will try to get the other two on the blog.
Dick W.Posted Imagem/albums/l100/jeepersthree/IMG_1634.jpg[/IMG]
1954 CJ-3B
Semi-modified for trail riding in the Northwest.
See photos on CJ-3B page owners photos 1954.
1968 CJ-5/1975 231 odd fire V-6/ many other mods. ordered new from Toledo 1968.
Offline Profile Quote Post Goto Top

williams3b54
Williams3B54
[ *   *   *   *   *  ]
I am still trying to get the photos that are missing from my first shot at posting pictures. Here goes again.
Dick W. Spokane Wa.Posted Images/l100/jeepersthree/IMG_1634.jpg[/IMG]
1954 CJ-3B
Semi-modified for trail riding in the Northwest.
See photos on CJ-3B page owners photos 1954.
1968 CJ-5/1975 231 odd fire V-6/ many other mods. ordered new from Toledo 1968.
Offline Profile Quote Post Goto Top

williams3b54
Williams3B54
[ *   *   *   *   *  ]
This is really screwing with me now.
Dick w. SpokaPosted Imagene Wa.
1954 CJ-3B
Semi-modified for trail riding in the Northwest.
See photos on CJ-3B page owners photos 1954.
1968 CJ-5/1975 231 odd fire V-6/ many other mods. ordered new from Toledo 1968.
Offline Profile Quote Post Goto Top

williams3b54
Williams3B54
[ *   *   *   *   *  ]
O.K one more picture and only one at a time.
Dick W Spokane Wa.Posted Image
1954 CJ-3B
Semi-modified for trail riding in the Northwest.
See photos on CJ-3B page owners photos 1954.
1968 CJ-5/1975 231 odd fire V-6/ many other mods. ordered new from Toledo 1968.
Offline Profile Quote Post Goto Top
