Triangle Stamping
Topic Started: Aug 17 2013, 05:20 PM (570 Views)
derekredmond
Member Avatar
Administrator
[ *   *   *   *   *  ]
I still don't know what the numbers stamped in a triangle mean. Anybody have any new information?

See photos at http://www.film.queensu.ca/CJ3B/SerialNos/...alNosFrame.html

Derek

Posted Image
Derek Redmond
Kingston, Canada
1959 CJ-3B
http://CJ3B.info/About.html
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
My 1953 frame is not "triangle" stamped.
My 1959 frame is triangle stamped 7 - D - 2
My 1962 frame is triangle stamped 9 - D - 12

I have an idea but not enough examples to verify the exact meaning at this time.
If others will post the year of their CJ-3B and indicate any evidence of a triangle stamping on their CJ-3B and we can likely conclude.

Enter your country, the jeep model, any evidence of triangle stamping.
The serial plate number may also be helpfull.
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top

jking
Member
[ *   *   *   *   *  ]
1958 3B

serial number 57348 47330
frame 47330
frame triangle 5 D 16

Born and raised in Toledo Ohio, USA.
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case.

Northest Ohio
Offline Profile Quote Post Goto Top

Lawrence
Member Avatar
Lawrence
[ *   *   *   *   *  ]
Ken,

Year 1955 CJ3B

Serial# 57348 18439

Frame# 18439

Frame Triangle # 2 D 11

Engine # 4J92830

Location Decatur, Alabama

(Purchased new in Birmingham, Alabama)

Lawrence

Posted Image
1955 CJ3B
Family Tradition
Decatur, AL
~~"Seen it all, done it all, can't remember most of it"~~
~~"We cannot direct the winds but we can adjust our sails"~~
http://cj3b.info/Owners/Wade.html
http://cj3b.info/Events/SEWillys2017.html
http://cj3b.info/Owners/WadeRiver.html
Offline Profile Quote Post Goto Top

Dom
Member
[ *   *   *   *   *  ]

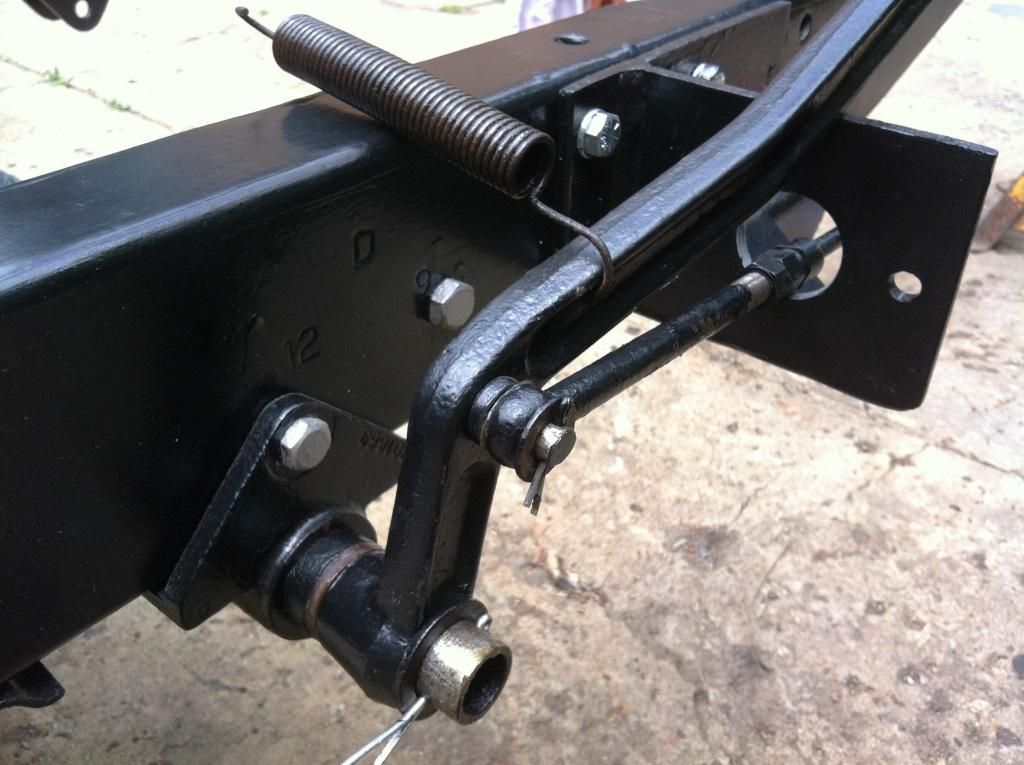

I took this photo of the triangle numbers during my rebuild.

1958 right hand drive CJ3B delivered to Australia, S/N 57348 44479L

Triangle numbers are 12 - D - 9

My thoughts were the values would all work as calendar dates - eg mine would be Dec 9.

The other values posted thus far would all also work this way as well I think.

The D? Who knows - maybe an assembly line or plant, or a version/evolution of the frame?

Posted Image
Melbourne, Australia
1942 Willys MB
1945 Ford GPW
1958 Willys CJ3B
1984 Jeep CJ7
1985 Jeep CJ8 World Cab
Offline Profile Quote Post Goto Top

oldtime
Member Avatar
MODERATOR
[ *   *   *   *   *  ]
Here's my current thinking.
Unlike some earlier CJ frames I believe the triangle stamped frames were assembled at the Willys plant.
I believe the first and last digits will represent the month and the day of the frame assembly.
From over a dozen examples; I have seen no first digits any higher than 12 and no last digits higher than 31.

The uppermost stamping ?
I thought the "D" possibly meant Domestic but thanks to Dom's reply concerning his exported jeep that remains in serious doubt at this time.
A few examples are stamped "547" in lieu of the "D" stamping.
Perhaps that upper stamping indicates the particular plant where the frame was assembled ?
Currently building my final F-134 powered 3B .
Rock Crawler using factory parts from the Willys Motors era (1953-1963)

http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new
Offline Profile Quote Post Goto Top
