| distributor; correct? | |
|---|---|
| Tweet Topic Started: Oct 12 2013, 04:40 PM (336 Views) | |
| jking | Oct 12 2013, 04:40 PM Post #1 |
|
Member
![]() ![]()
|

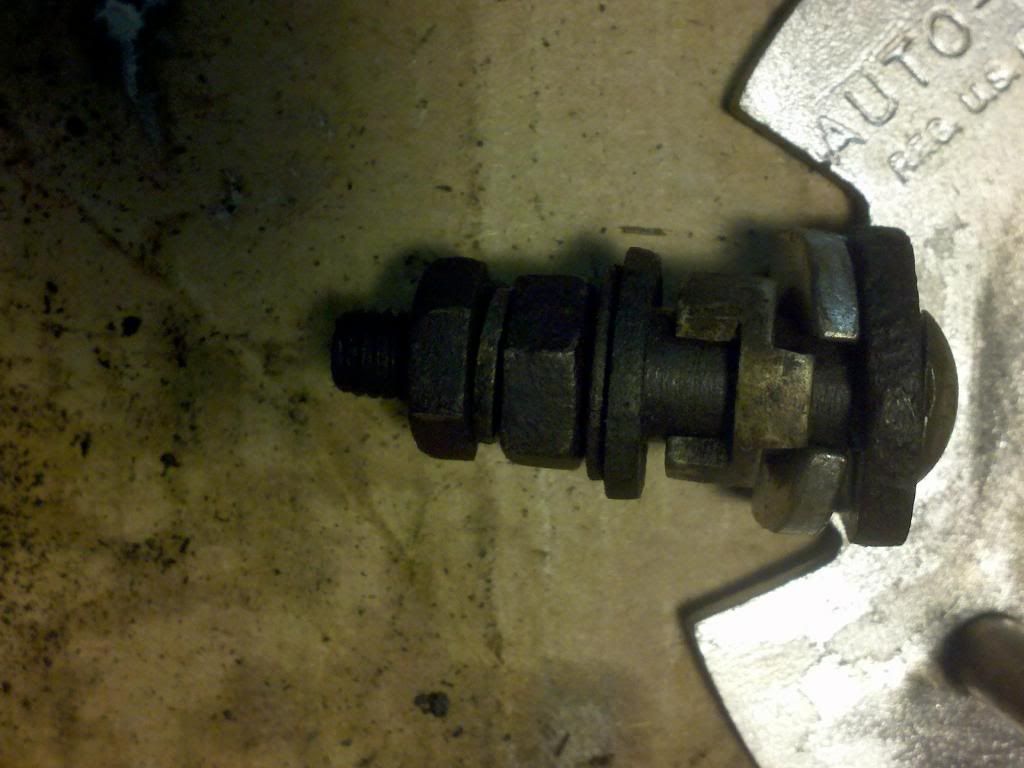

I take lots of pic's, but do I take pic's before I take things apart? Nooooooooo! is this the correct setup for the post? It's really hard to understand from the parts manual and I think mine is different anyway.
|
|
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case. Northest Ohio | |
![]() |
|
| oldtime | Oct 13 2013, 01:48 PM Post #2 |
![]()
MODERATOR
![]() ![]()
|
That really depends on what particular model of distributor you have. Please identify your particular distributor or else provide pics of it. |
|
Currently building my final F-134 powered 3B . Rock Crawler using factory parts from the Willys Motors era (1953-1963) http://s4.zetaboards.com/CJ3B_Bulletin_Board/topic/30228766/1/#new | |
![]() |
|
| jking | Oct 13 2013, 02:06 PM Post #3 |
|
Member
![]() ![]()
|
|
|
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case. Northest Ohio | |
![]() |
|
| Don | Oct 13 2013, 09:35 PM Post #4 |
|
Member
![]() ![]()
|

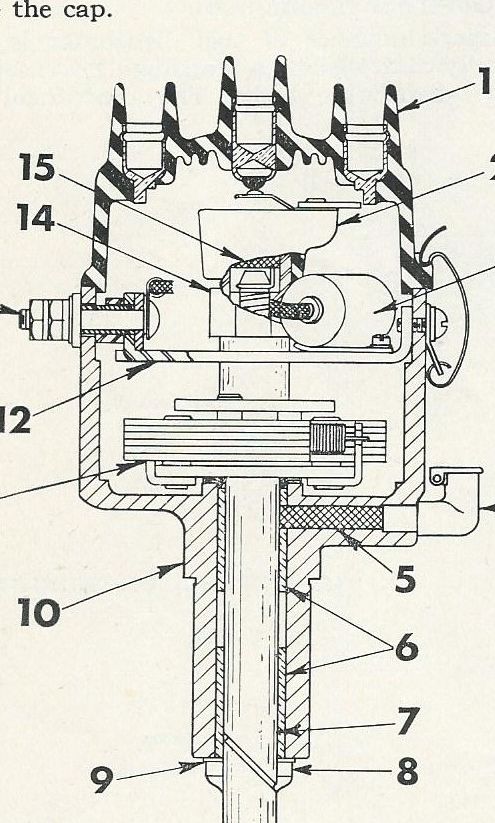

It looks to me like you have it correct if you're going to have the housing between the large flat washer on the left and the camlock (my word) looking thing to the right of the open area. I found this drawing in the electrical section of Service Manual 1002-R5. Main concern , make sure bolt is insulated from the metal housing. Good luck
|
|
Don Norris Southeast, NC 1953 CJ3B 1959 Jeep Pickup 195? M100 trailer ~~~~~~~~~~~~~~ The trail never ends ~~~~~~~~~~~~~~~ If lovin' Jeeps is wrong, I don't wanta be right. | |
![]() |
|
| jking | Oct 14 2013, 07:48 AM Post #5 |
|
Member
![]() ![]()
|
Thanks Don, that drawing helps a lot. |
|
1958 CJ3B F134 engine\Dana 25 with Spicer type axles\Dana 44 rear\T90 trans\Dana 18 transfer case. Northest Ohio | |
![]() |
|
