1964 dj3a wheel caps; need help to select correct wheel caps
Topic Started: Sep 18 2015, 11:37 PM (1,582 Views)
dcwheels
Member
[ *   *   *   *   *  ]
Hello friends,
I have just procured a 1964 rhd,dj3a here in India.
I have been searching for wheel caps for the same.
It is on 15 inch ,4lug wheels.
On previous discussions on the forum,I had gathered that a 1964 dj3a would have umarked wheel halfmoon/ dogdish chrome caps.
On ebay there are sets of similar wheel caps on sale,the link i have added below.
I request experts on forum to guide me to know if these would be rightfor the 1964dj3a.
Regards.
Dc
http://m.ebay.com/itm/4-CHROME-STEEL-CENTE...WATCHING_ACTIVE
Offline Profile Quote Post Goto Top

ba25
Member Avatar
Member
[ *   *   *   *   *  ]

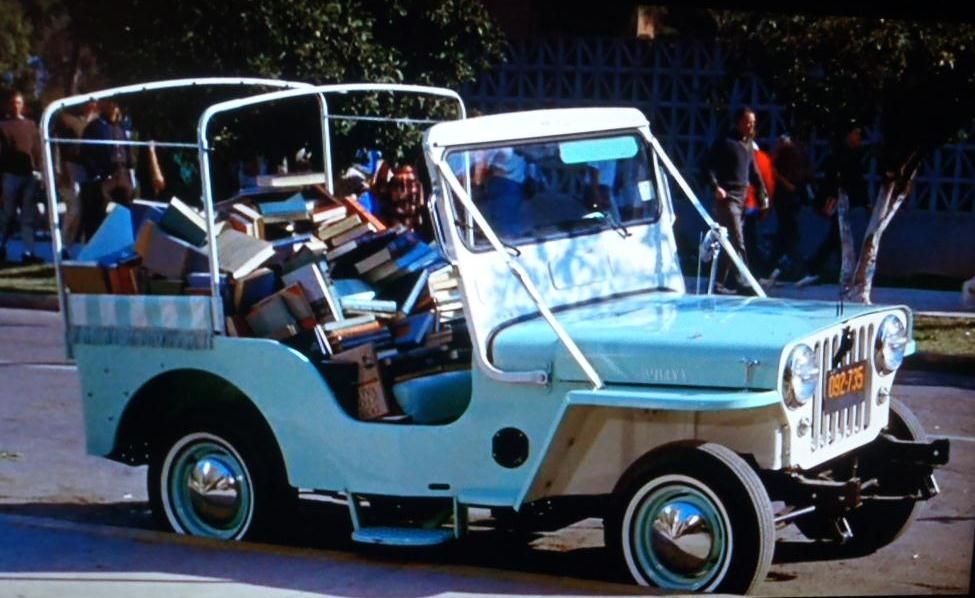

the 15" dj hubcap were like this one below

Posted Image

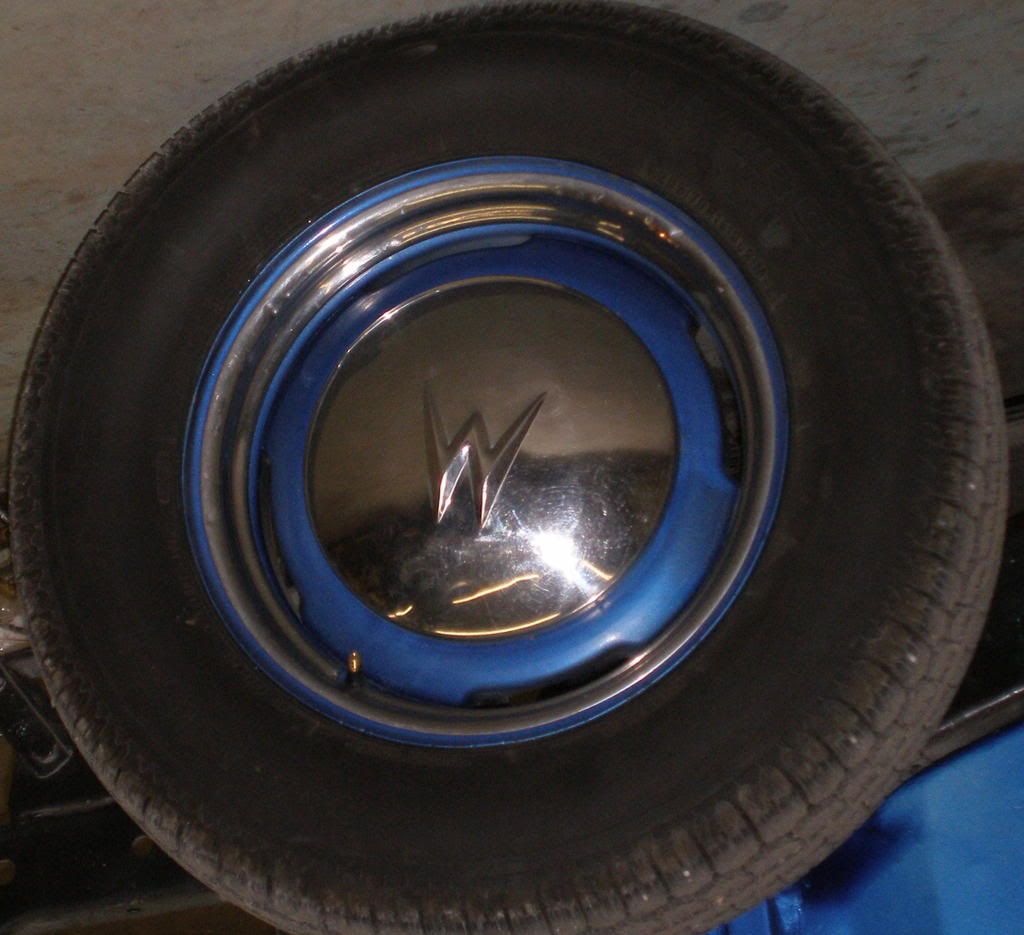

the 1963 DJ with 13" wheels used a smooth babymoon hubcap
and it was only used on the 13" wheels in 63.
all other years utilized the W style hubcap (like above) besides the surrey style wheel cover

Posted Image


the ones you have shown in link might work, if the measurements are same, I don't have any to check for you, maybe someone can check on measurements of the W hubcap for comparision
BA Agan

46 Bantam T3-C 2953
46 Bantam T3-C 19638 "Big Red"
49 CJ-2A 222564
51 M38 MC 28115
52 M100 285896
62 CJ5 57548-148683
64 DJ3A 8204-24210
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Thanks for the info.
Did these have a cuff to fit in to the rim as in the eBay ad? Or would be direct snap on to the rim.
What would 1964 calls look like?
Plain dome.!
Thanks again. Looking forward for guidance.
Dc.
Anyone on the forum can please help with a spare set if available.
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
Here's one for reference. Pictures show both sides....

http://www.ebay.com/itm/Willys-Hubcap-Dog-...=item419c45d041

The ones you show seem to be "Baby Moons" for aftermarket rims where they fit inside a raised part of the rim. Willys caps fit over raised nubs on the rim, not inside.

Good Luck finding a quality set.
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Thanks alot Steve for the guidance.shall get back with a new search.
rregards.
dc
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
By the way, DC, I see the referenced Ebay cap description says 11"...but I measured mine to be 10" OD and 9-5/8" ID. I believe but can't swear to it, that Jeepster caps ARE NOT the same, so be careful...what you read in Ebay descriptions as truths...not all Willys caps are the same or will fit.
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Thanks for the tip Steve.shall follow your advice.
regards.
dc
Offline Profile Quote Post Goto Top

PapaC
Papac
[ *   *   *   *   *  ]
Edited
Charles Tate....North Mississippi

1956 WILLYS DJ3A Convertible
Doing ground up nuts and bolt restoration by almost entirely reconditioning original used or a few NOS DJ3A parts.

1962 WILLYS DJ3A Convertible. (For research and parts only)
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Time to search for a set of wheel caps for the 64 Dj.
Kindly request friends to help with av representative picture as to what would be correct.
Thanks.
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
See above. Single tire pic is 15" wheel, and the Surry has 13" wheels with smooth caps, in pics already provided by our dear and now departed friend, BA25...
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Hi Steve
We have that picture, but by 1964 the dj3a was no longer a Willys product.
Any pictures of a 1964 Dj with wheel caps. Couldn't find one on my search.
Thanks.
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
This may be what you're looking for. I have no idea of any specs on it, but the rim fit looks the same style as Willys, actually a KH rim manufacturer used. Good Luck! ... https://www.google.com/search?q=photos+1964...s1AsAh9TD6-M%3A
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Would it have JEEP written on it or would be plain?
These are similar to the dog dish ones.
Offline Profile Quote Post Goto Top

PapaC
Papac
[ *   *   *   *   *  ]
Edited
Charles Tate....North Mississippi

1956 WILLYS DJ3A Convertible
Doing ground up nuts and bolt restoration by almost entirely reconditioning original used or a few NOS DJ3A parts.

1962 WILLYS DJ3A Convertible. (For research and parts only)
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
Charles, check again your measurement on the "W" dog dish. You must be tired.
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top
