Dj3a handbrake assembly; need to know parts required to restore
Topic Started: Jan 27 2016, 12:34 AM (1,327 Views)
dcwheels
Member
[ *   *   *   *   *  ]
Hello friends
At last I have work started on the dj3a.
In the first phase we have started restoring the front and rear axle,brakes and transmission.
Having seen no djs being restored and the rarity of the dj here in India,I need some guidance over rebuilding the handbrake assembly.
the T shaped lever does exist on the dj at present but the rear wheel plates lack the internal parts to get it functional.
I request experienced members and experts to guide me on the same.
any help with references and pictures would be very helpful.
Thanks again.
regards,
dinesh
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
Dinesh, I'm no expert, just a one-time experience observer, but try this link...
http://z4.invisionfree.com/CJ3B_Bulletin_Board/ar/t6390.htm
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Thanks a lot Steve.
That is indeed a detailed post on the dj handbrake assembly.
After going through that post I am more anxious now,on how would I source those parts.
Could anyone help me get a set of those here ?
Thanks again.
Dinesh
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
Try starting off with these...Happy Hunting.

http://midwestwillys.com/

http://walcks4wd.com/walcks-willysjeepparts/

http://www.kaiserwillys.com/

P.S. I think the 4 cyl 2WD SW and PU with 9" brakes also use the same E-Brake...
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
thanks steve.
Offline Profile Quote Post Goto Top

fredcc
Member Avatar
Member
[ *   *   *   *  ]
Dinesh I found some parts that I needed
here.
https://www.willysjeepparts.com/
Post some pictures of what you have see
what people may come up with. FC
1965 DJ3 CONVERTIBLE In work
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]

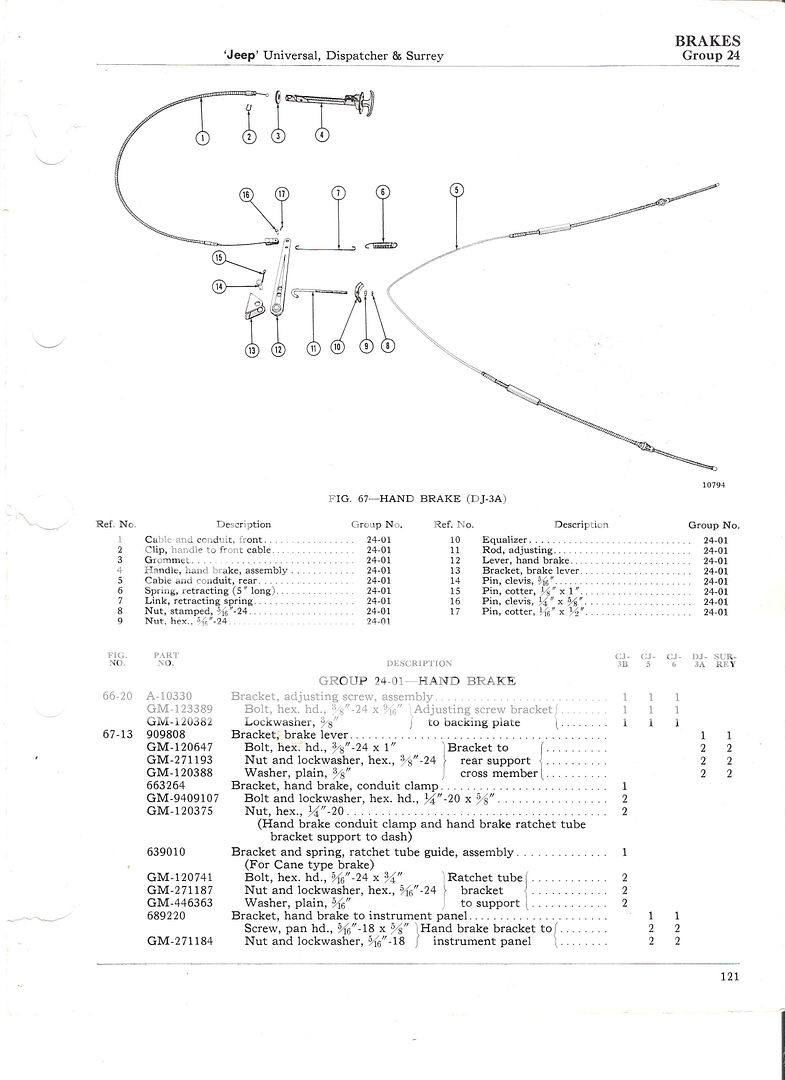

part numbers 6,11,12, and 13 is what is need for both sides.Posted Image
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Thanks Charles.
Well get back to you with more details.
Take care.
Regards.
Dinesh
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Need a line diagram on the course of the cable and parts along from the handle on the dash to the rear drum.
Thanks again.
Dinesh
Offline Profile Quote Post Goto Top

PapaC
Papac
[ *   *   *   *   *  ]
Posted Image

http://www.jeepsurreygala.com/?attachment_id=2308

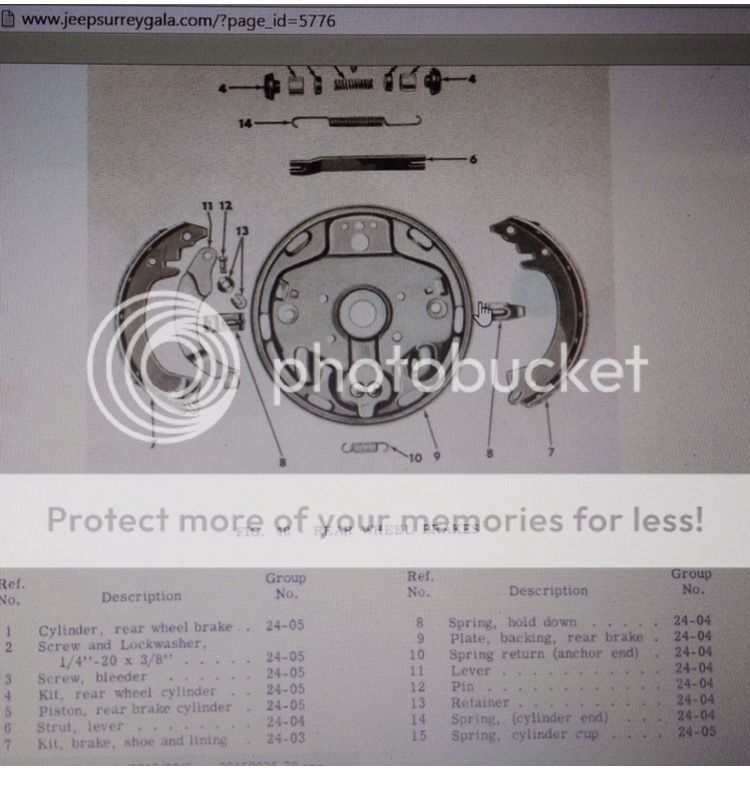

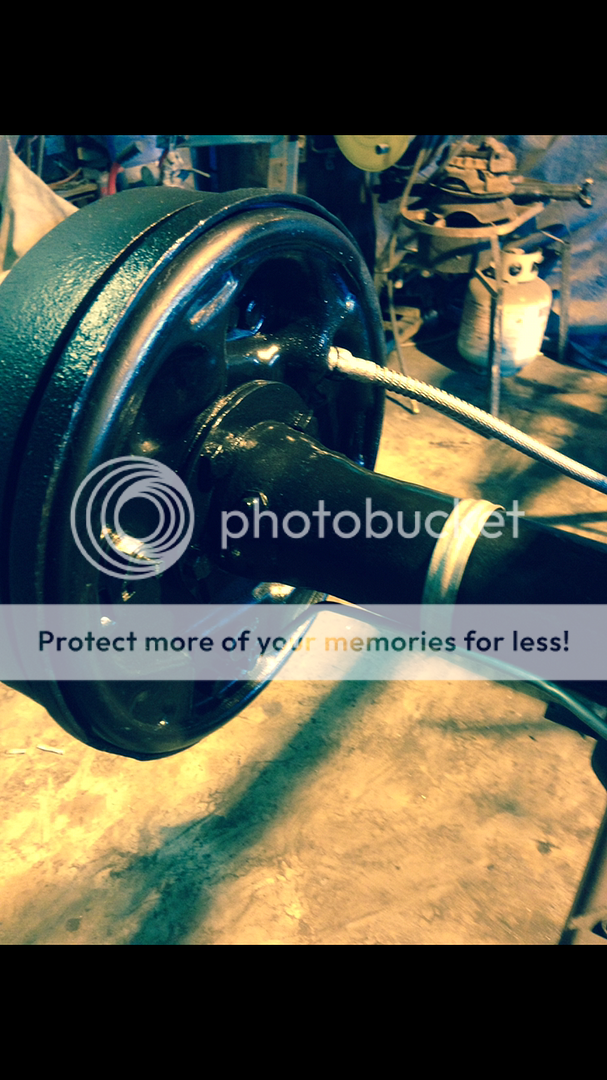

Posted Image





Posted Image


Quote:

Hello Charles,
Need 6;11;12;13 parts marked for the hand brake assembly.if possible the hand brake cable too.thanks
Dinesh



There's two types of handbrake cables. A cane handle takes a different cable end than the t-handle type.
Charles
Charles Tate....North Mississippi

1956 WILLYS DJ3A Convertible
Doing ground up nuts and bolt restoration by almost entirely reconditioning original used or a few NOS DJ3A parts.

1962 WILLYS DJ3A Convertible. (For research and parts only)
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
Thanks Charles for all the info.
It would be very helpful if you could help me with the list of attachments,springs and brackets needed.
Also guide me at any parts seller who could help with these.
Would come up with more queries in days to come.
Thanks.
Dinesh
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]

http://www.jeepsurreygala.com/?attachment_id=2308



[/QUOTE]
Can somebody please help me with the dimensions of the part no.12 in the diagram in the picture above.
It is the handbrake lever that fits the rear of the transmission cross member.
A line diagram of what fits where from the same diagram would be helpful too.
Thanks.
Dinesh
Offline Profile Quote Post Goto Top

SteveK
Member
[ *   *   *   *   *  ]
Try... http://z4.invisionfree.com/CJ3B_Bulletin_Board/ar/t6452.htm
SteveK
62 Dispatcher
South Florida
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
That's great info.
Some other doubts. I may sound silly,but not able to understand.

1. Where does the spring no. 6 attach to ?
2. Where would the hooked end of adjusting rod no.11 engage,the first hole or the second close to the pivot?
3. Where does the rear cable run on the equaliser no.10?

Thanks.
Regards.
Dinesh
Offline Profile Quote Post Goto Top

dcwheels
Member
[ *   *   *   *   *  ]
The rear cable is placed inside the equaliser loop and the equaliser no.10 is fixed with the hex nut over it to avoid it being displaced when in action.
Do I sound right?
Offline Profile Quote Post Goto Top
