Tappets- Have You Had Them Reset??
Topic Started: Jul 19 2008, 12:02 PM (2,301 Views)
greeneyes
Member Avatar
Targa Master
[ *  *  *  *  *  *  *  *  * ]
I thought Altezzas had hydralic tappets under the cam, so never needed setting, but nick looked up the workshop manual and they are standard bucket & shim type.

To reset the gaps you measure them all with feeler guages, take apart the ones that have the wrong gap and replace the shim with one of a different thickness that gives the right gap.

If the valve seats wear the valves move up in the head and the gap vanishes, then it stops closing and you burn teh vlve edge and get a chuffing sound.

If the valve top/shim or bucket wears then the gap gets bigger, the cam doesn't open the valve as much and you hear a tapping sound.

If you have had this done-
How much did it cost?
How long did it take?
Where did you get it done?
...and how many Km had you done.

I haven't heard anyone mention having tappets done, yet we have cars on here with over 150,000km.

cheers

http://www.alltrac.net/phpBB2/viewtopic.php?t=26320
The Girl's KE70-
http://www.rollaclub.com/board/topic/42407-the-girls-ke70/
How NOT to build a rally car-
http://www.rollaclub.com/board/topic/64027...ld-a-rally-car/
Offline Profile Quote Post Goto Top

turbo tezza
Member Avatar
Sacked
[ *  *  *  * ]
I have had the whole head rebuilt at christmas.

I don't think they did the shims though, and also with the manual heads, they have titanium valves on exhaust side and can't be skimmed if worn as they tend to break.

Celica RA45 will be able to tell you more, as he has had quite a bit to do with them.

They shouldn't wear as they have hardened vavle seats in the head, so if they start getting very noisy there is probably something else wrong.
I would say you shouldn't see any problems till lots of km on the clock.
(250,000+ km)

Corey


Location: Christchurch....and got a job driving - yay!!!

My Car build-up
Offline Profile Quote Post Goto Top

madaltezza
Sleeper
[ *  *  *  *  *  * ]
im about to go though that with my head as im running diffrent cams now ill let you know when it done
Offline Profile Quote Post Goto Top

greeneyes
Member Avatar
Targa Master
[ *  *  *  *  *  *  *  *  * ]

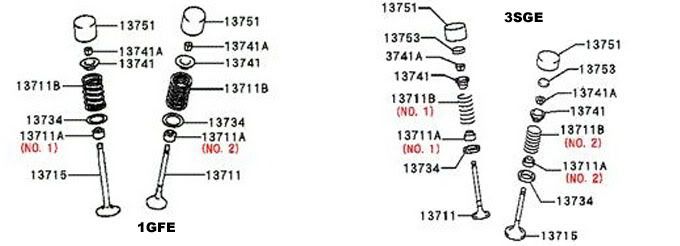

OK, nick looked up the diagrams.

Part 13753 on the 3SGE is a replaceable shim coming in various thicknesses.

The 1GFE has lifters (13751) that come in various thicknesses to do the same job.

Posted Image
The Girl's KE70-
http://www.rollaclub.com/board/topic/42407-the-girls-ke70/
How NOT to build a rally car-
http://www.rollaclub.com/board/topic/64027...ld-a-rally-car/
Offline Profile Quote Post Goto Top

Barryogen
^^^^^^^^^^^ Gayest Avatar ever
[ *  *  *  * ]
man, it's pictures like that that make me wonder how many parts there are for these cars, as in, pull apart, and catalog bit by bit, and number them.

There must be squillions.
Offline Profile Quote Post Goto Top

turbo tezza
Member Avatar
Sacked
[ *  *  *  * ]
For the manual and auto there are also different size valves aswell, and the valve stems are different lengths so nothing is interchangable :huh:

Been through that...

Corey
Location: Christchurch....and got a job driving - yay!!!

My Car build-up
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
Barryogen,Jul 21 2008
05:13 PM
There must be squillions.

LOL Your not wrong!

Try looking after a customer who tells you:
""I have a Camry, I'm after that round thing under the engine bay that has pipes coming out of it""
Camrys alone, there are 498 different variations!!
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Celica RA45
Lowered
[ *  *  * ]
they should be checked every 50,000 kays ,just to be sure the valves arn,t closing up there clearences ,mainly the inlet has a tendency to pound it self into the seat and the exhaust has a tendency to drop its head off the valve .This is only the manual motor as the auto uses steel valves and they seem to be fine so far in my race motor ,better than titatium thats for sure
shims are the same as gen 3 3sge and also 2tg and 18rg motors
Offline Profile Quote Post Goto Top

lowtezza
Soccer Mom
[ * ]
i had it dan on my levin 2yrs a go at toyota in chch it was $120 and thay had it for the day i had to get it dan wen i get the big cam in it
go fast or dont go at all
Offline Profile Quote Post Goto Top

jeremyflower
Member Avatar
Anything but soccer mom...
[ *  *  *  *  *  * ]
lowtezza,Jul 31 2008
01:55 AM
i had it dan on my levin 2yrs a go at toyota in chch it was $120 and thay had it for the day i had to get it dan wen i get the big cam in it

dan=done I think?
Blue 2001 AS300 Gita Z Edition

Master Aeronautical Metalworker
RNZAF Base Hobsonville
Auckland

Facebook: TheRealJeremyFlower
Offline Profile Quote Post Goto Top

Noel
Member Avatar
Virtual visitor
[ *  *  * ]
greeneyes,Jul 19 2008
12:02 PM
I haven't heard anyone mention having tappets done, yet we have cars on here with over 150,000km.

cheers

just seen this thread.... is it mentioned here?

Posted Image

whats the sensory method? :huh:
From Ireland...
Drive an RS200Z tiptronic
Offline Profile Quote Post Goto Top

Leiden
Member Avatar
NZ, Whangarei
[ *  *  *  *  *  *  * ]
What do you mean sensory method? I.E. How to measure valve clearance? I have a service manual for the 1G-FE I could have a look for you?
Project Thread
Offline Profile Quote Post Goto Top

Noel
Member Avatar
Virtual visitor
[ *  *  * ]
Leiden,Nov 2 2008
10:41 AM
What do you mean sensory method? I.E. How to measure valve clearance? I have a service manual for the 1G-FE I could have a look for you?

As in the above picture extract ... can you see the pic or is it blocked?
From Ireland...
Drive an RS200Z tiptronic
Offline Profile Quote Post Goto Top

is25exy
Member Avatar
i s0 5xc
[ *  *  * ]
hey guys has anyone had this done one a 1 gfe and if so how much did it was it and how long did it take??
IS-05-XC

life's simple... u make choices..n dun look baq
Offline Profile Quote Post Goto Top

senza
Member Avatar
Tauranga
[ *  *  * ]
So much easier to just tip/face the valves to suit :\
Current - '02 Ford Courier tow beast
Building - 2JZ S13 NZGT circuit car
Ex - '98 RS200 6MT
Ex - '00 RS200 4AT Qualitat
Offline Profile Quote Post Goto Top

Wez
Stock
[ *  * ]
I haven't done an Altezza engine yet, but have done a few 4age's, I used to just flip the shims over as they can go in either way, check with the feeler gauge to make sure it's in spec though. Only works once though ;)
Offline Profile Quote Post Goto Top

NewZealanda
Member Avatar
Andrew Adamson
[ *  *  *  * ]
Haha I so read this wrong before I clicked on it. Teapots - Have you had them... I was like yeeeah.


In all seriousness I haven'd had mine done. I know Mitsubushi ones get noisey
Andrew

Posted Image
Offline Profile Quote Post Goto Top

mondo
Soccer Mom
[ * ]
I did this when I changed the head gasket.Its not to hard to check the clearance, but if the shims need changing then its cambelt off,cams removed etc, which is quite a lot of work.I dont know what a shim is worth, but I only had one valve with to much clearance.I made a shim as I have access to a lathe and surface grinder.The shim material is about the same hardness as a grade 8.8 bolt, which is what I used.If the valves are found to be to tight, the shim can be sanded down by hand to suit.
Offline Profile Quote Post Goto Top
