2j + 3s = Homebuilt Hybrid; My Motor Assembly pics
Topic Started: Feb 17 2009, 07:36 PM (9,461 Views)
Distrb
Member Avatar
Nuts
[ *  *  *  *  *  * ]
Since there's a little discussion around the topic of Altezza turbo motors, i thought I'd post up a few pics of my turbo motor for my 3sge powered Altezza. I'm pretty sure I'm not pioneering this at all, as surely someone else out there has done this previously. However I've not yet managed to find anyone to ask for information, so made a few mistakes a long the way (3sgte pistons anyone?). All i can hope is that this info serves as a bit of inspiration for someone else with their project or just simply shows that with a little bit of work there is another option than spending a mint on Toda Gear if you're clearly not after big power. (machining, rods and pistons cost me less than $1K and i bought new!)

Anyhow here's the detail: (all images are thumbnailed)


Block
Stock Altezza 3sge
Very Slightly Decked and Honed
Posted Image


Pistons

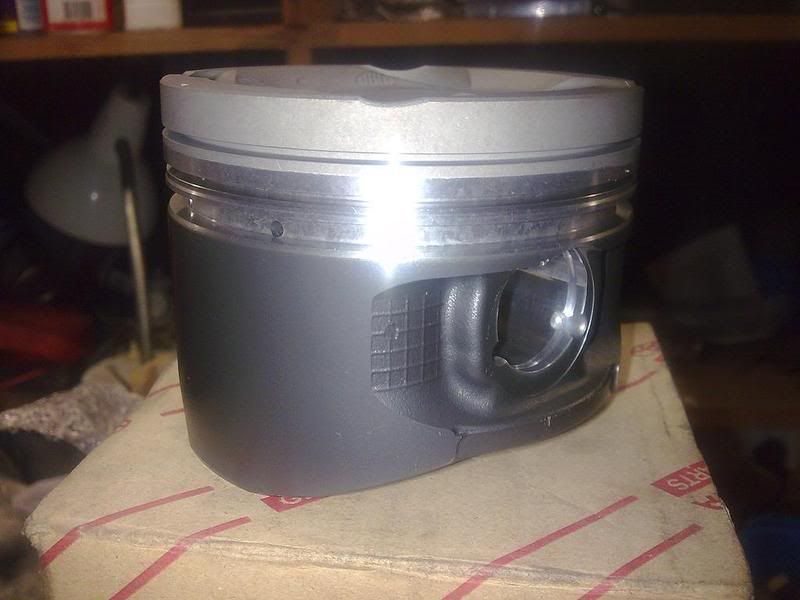

Pic 1 - Genuine Toyota 2JZGTE pistons (Same Bore and same Gudgen Pin size)

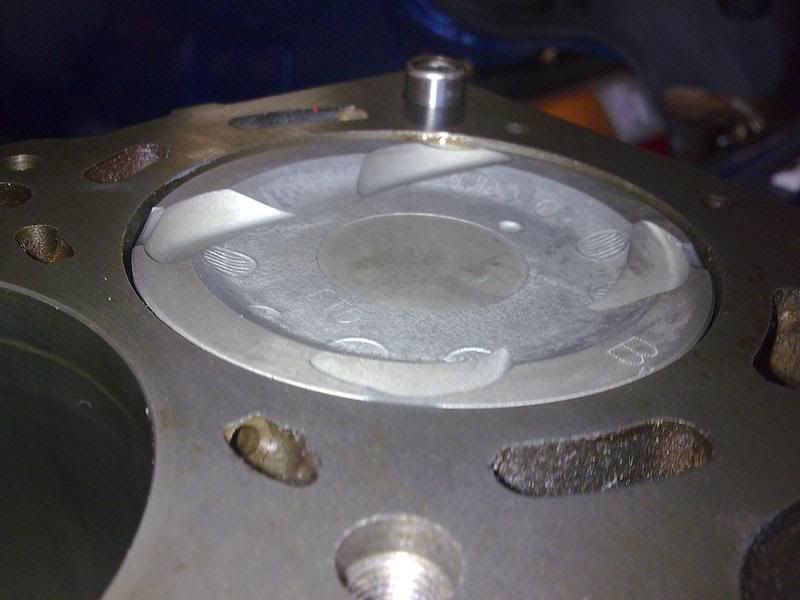

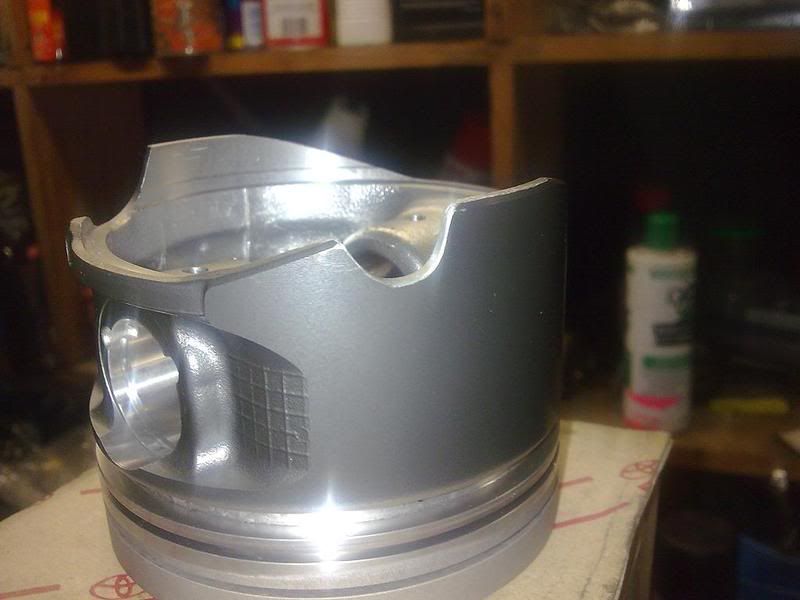

Pic 2 - Machined Skirt to clear 3SGE oil squirters, all evenly balanced. (Die Grinder Special
Rings - Genuine Toyota 2JZGTE (Provide Acceptable tolerances)

Posted Image Posted Image


Conrods

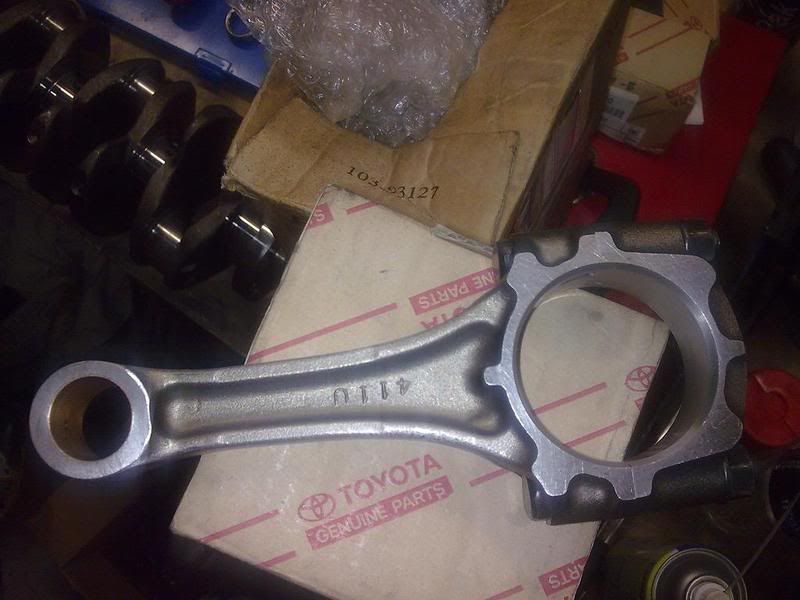

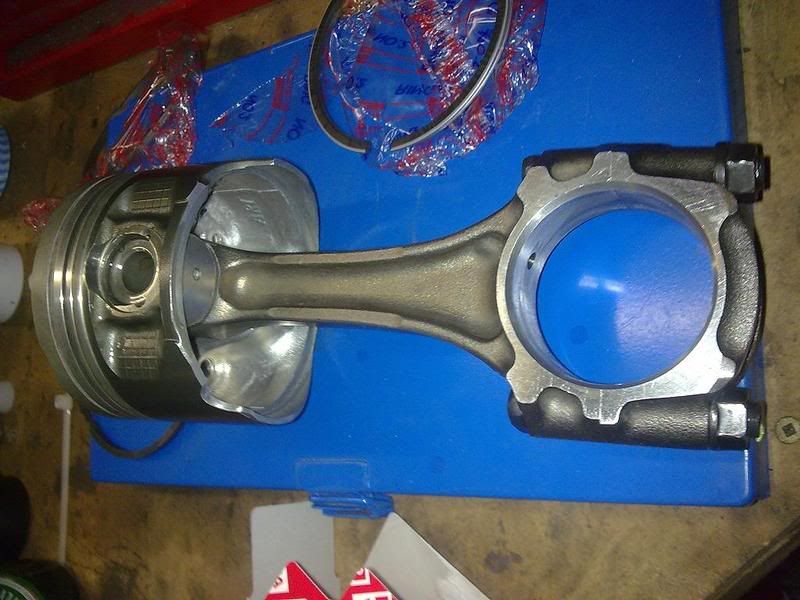

Pic 1 - Genuine Toyota 3SGTE Conrods (Gen 3) Balanced End to End
Pic 2 - Gudgen Pin end machined for clearance inside 2J Piston (Die Grinder and Linisher special)

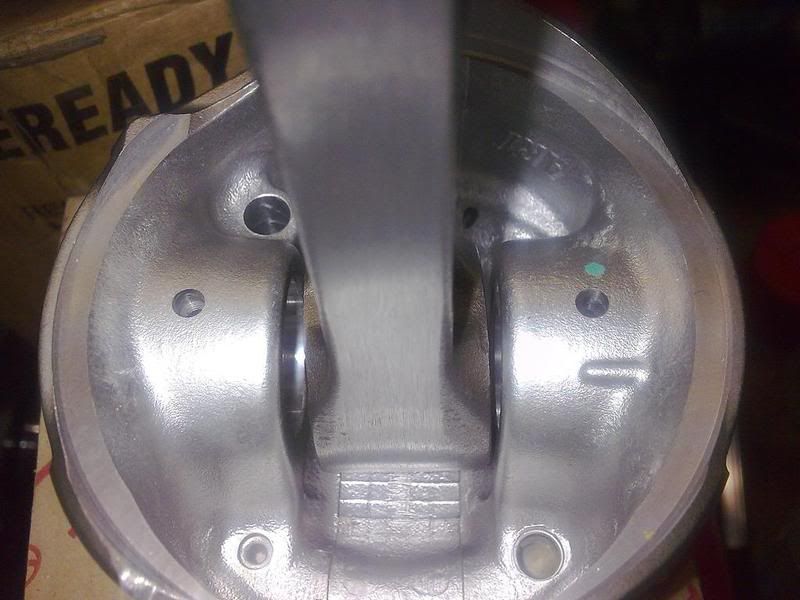

Pic 3 - Rod fitted to piston
Conrod bearings - Genuine Toyota 3SGTE

Posted Image Posted Image Posted Image
Offline Profile Quote Post Goto Top

Distrb
Member Avatar
Nuts
[ *  *  *  *  *  * ]
Crankshaft

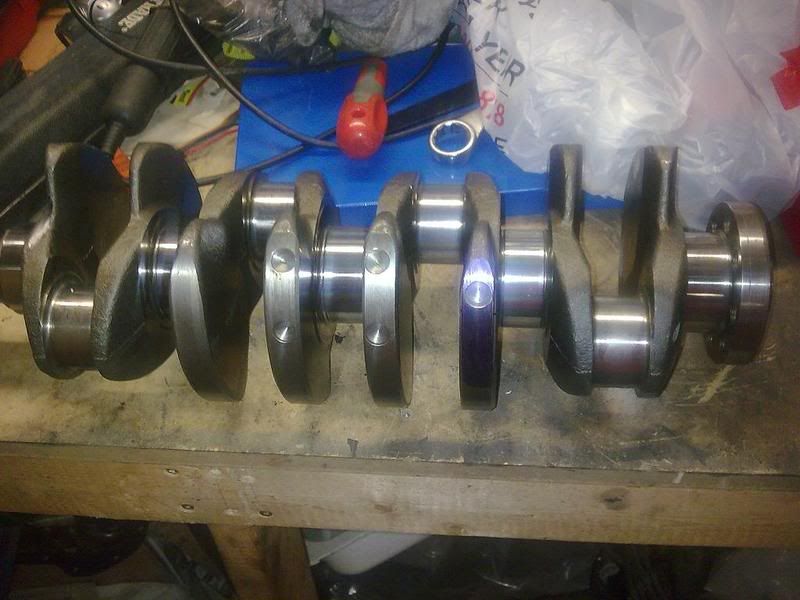

Pic 1 - Genuine Toyota 3SGE (Altezza Gen)

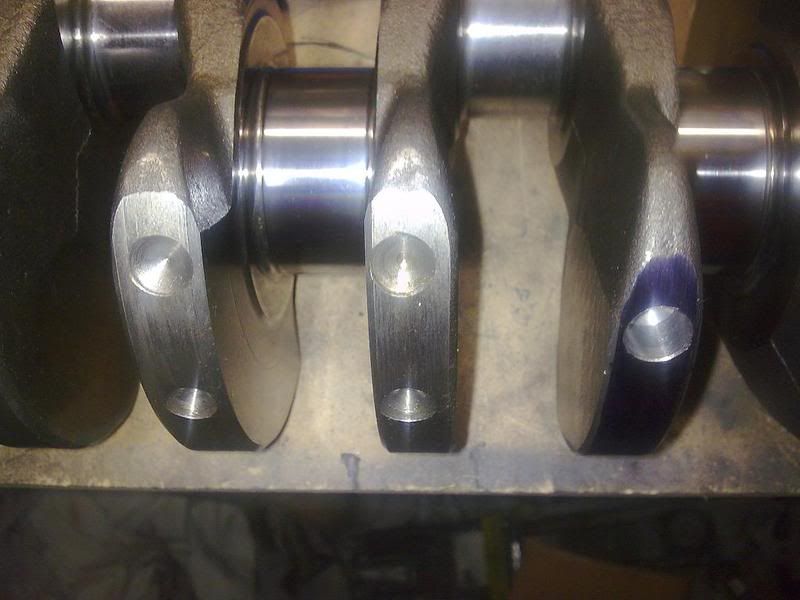

Pic 2 - Counterweights machined to clear 2JZGTE pistons(due to lower pin height) and balanced (blue mark)
Main & Thrust bearings - Toyota Genuine

Posted Image Posted Image


Assembly Pics

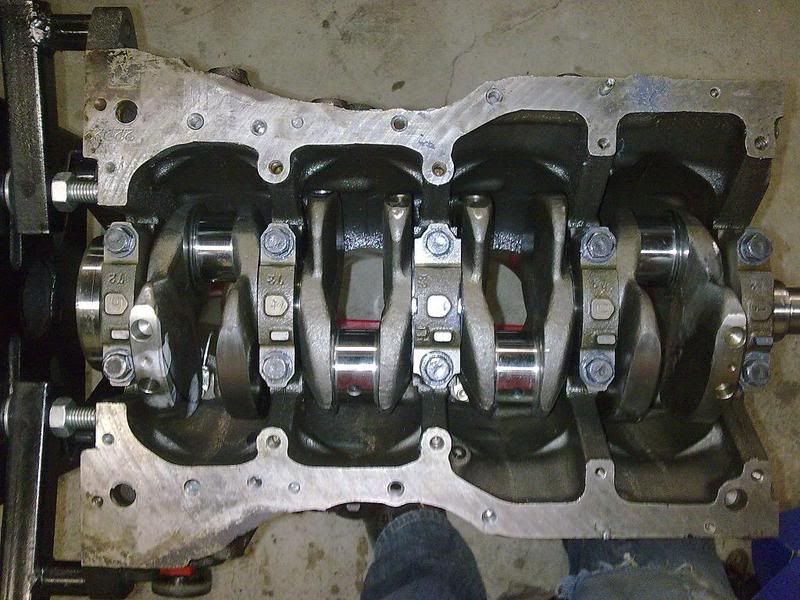

Pic 1 - Crank, oil squirters & Main Bearings fitted and mains torqued
Pic 2 - All Pistons & Rods in with conrod bearings fitted and torqued, stock head Gasket

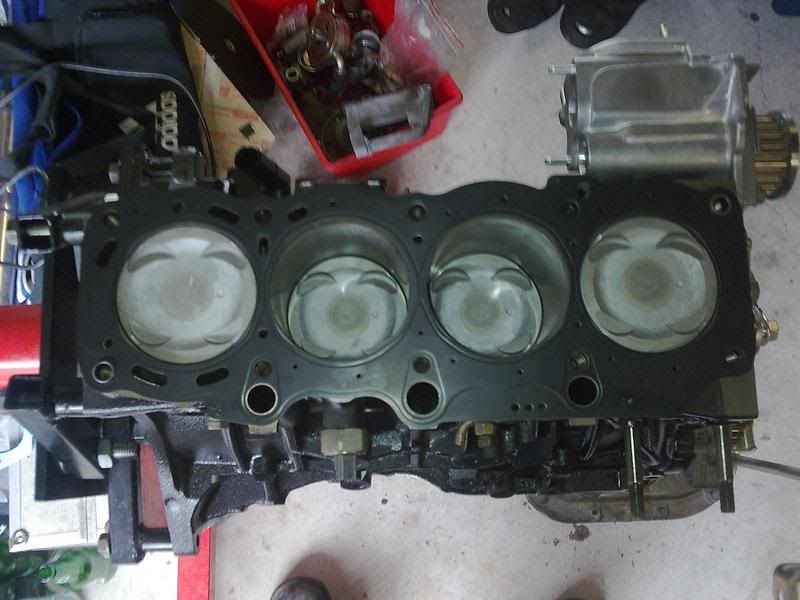

Pic 3 - Deck Height - Piston is at TDC - 1mm lower comp height

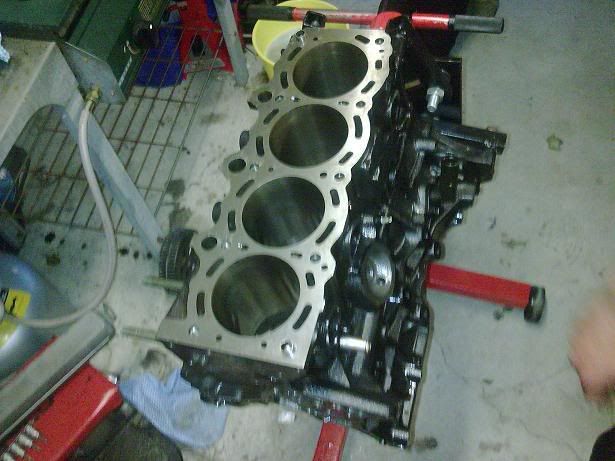

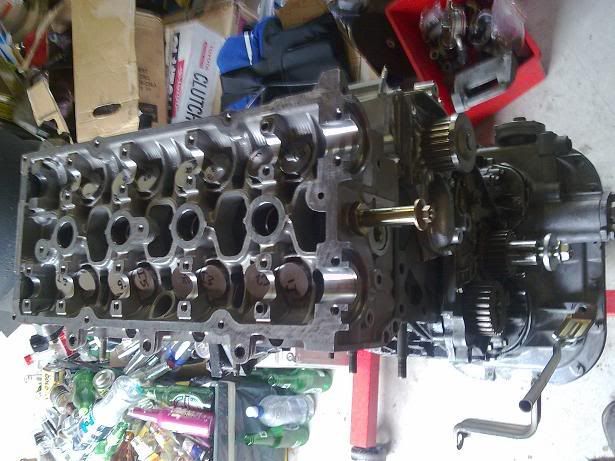

Pic 4 - Stock Head, sump, Windage tray and oil pan fitted.

Posted Image Posted Image Posted Image Posted Image


That about it really, there isnt a huge amount of machining required over what you should normally do. Only exception was balancing, mainly the front pulley, bolt, crank, cambelt gear, flywheel, pressure plate, clutch and flywheel bolts. With these pistons( with their larger dish and a good deck height), with my block and head (all oem and unmachined other than minor decking of the block) and stock head gasket leave with a static compression ratio of 9.5:1 . Which i think will leave me with good off boost driveability with the and able to wind boost into it reliably.

I havent got the motor running with the turbo yet (mocking up intercooler and downpipe etc) but will be updating with results (might even put up a proper build thread) when it does get running, in the next couple of months all things being equal.

Cheers
Andrew
Offline Profile Quote Post Goto Top

Leiden
Member Avatar
NZ, Whangarei
[ *  *  *  *  *  *  * ]
You make me so jealous :(

Just a question, why is it necessary to get the whole assembly balanced when shaving the crank?

I thought you could get away with just balancing the crank?

Could you get away with just taking the 2mm off the bottom of the piston's instead of the crank?
Project Thread
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
Great job and write up Andrew! Looking forward to see the results!

Decided what turbo your going to be using yet? Sticking to the HKS GT2871?
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Leiden
Member Avatar
NZ, Whangarei
[ *  *  *  *  *  *  * ]
Oh and another question, the Gudgeon End of the rods kind of float left and right on the ST246 pistons I have here,

Why is there so much left to right play between the Piston and the Gudgeon End? It has about 2mm play each way :blink:
Project Thread
Offline Profile Quote Post Goto Top

Distrb
Member Avatar
Nuts
[ *  *  *  *  *  * ]
Quote:

You make me so jealous :(

Just a question, why is it necessary to get the whole assembly balanced when shaving the crank?

I thought you could get away with just balancing the crank?

Could you get away with just taking the 2mm off the bottom of the piston's instead of the crank?


Because it is all a part of the same rotating mass. Think about it, you bolt the pulleys to the crank, and the flywheel and clutch to the crank. This all affects the balance. I’m of the opinion you should be balancing anyway to reduce internal engine loads and vibrations that put undue stress on components that eventually lead to a failure. Build it properly, build it to last.

Few reasons why I didn’t machine 2mm off the pistons. One is because it is easier to get right and less time consuming to shave the crank, rather than 8 sides of individual pistons. Two because there is a lovely coating there I wish to not damage any more than I have by grinding clearance for the oil squirters. And Three because it reduces the overall height of the piston which could lead to it being unstable in the bore when rotating. In short, its quicker and easier to get right.

Quote:

Great job and write up Andrew, decided what turbo your going to be using yet?
And what engine managment?


Thanks mate. Have got an HKS GT-RS, which is basically a Garrett GT2871R modified by HKS (think ball bearing and slightly different wheels) For engine management I have an Apex-i PowerFC. Will see what happens, but I don’t forsee too many issues using the PowerFC. Plenty of options available if it doesn’t.

Quote:

Oh and another question, the Gudgeon End of the rods kind of float left and right on the ST246 pistons I have here,

Why is there so much left to right play between the Piston and the Gudgeon End? It has about 2mm play each way :blink:


Need the clearances for heat expansion and movement throughout its motion due to it being a floating pin setup
Offline Profile Quote Post Goto Top

greeneyes
Member Avatar
Targa Master
[ *  *  *  *  *  *  *  *  * ]
Very nice Andrew!

I'm always impressed by people doing it themselves rather than buying bolt-on parts.
The Girl's KE70-
http://www.rollaclub.com/board/topic/42407-the-girls-ke70/
How NOT to build a rally car-
http://www.rollaclub.com/board/topic/64027...ld-a-rally-car/
Offline Profile Quote Post Goto Top

Distrb
Member Avatar
Nuts
[ *  *  *  *  *  * ]
Cheers greeneyes, its great that toyota make so many compatible parts (even if some require only minor machining)
Offline Profile Quote Post Goto Top

Distrb
Member Avatar
Nuts
[ *  *  *  *  *  * ]
Figured i should update this since i've had it running.

Started up and ran fine, purrs like a kitten even, like it was meant to be.

After doing a large global pull of timing across the map (i am using the Ljetro power fc, so it has a very n/a base tune) , we took it out for some road tuning, mostly off to 1~2psi boost (thanks to adjustable actuator arm) at light load to make sure things were going well. which they were. Very smooth, very responsive. The low down torque was great.

Ok time for some higher load runs. Give it about 1/2 throttle. gets to just over 5500rpm and my mate with the knock headset yells at me to back the f**k out of the throttle. Just as i lift off and pull out of gear, a small pinging noise is heard, and the car shuts down completely.

The noise that was heard on the headset was apparently metal on metal. NOT good.

So ended up getting a flat tow back home (was tuning less than a km from my house) pushed it into the shed and decided to do a bit of a compression test. So whipped all coils out, and all plugs out. When i got to the plug on cylinder number 2, it was ultra tight and took ages to wind out. When i got it out, i knew i had found the problem

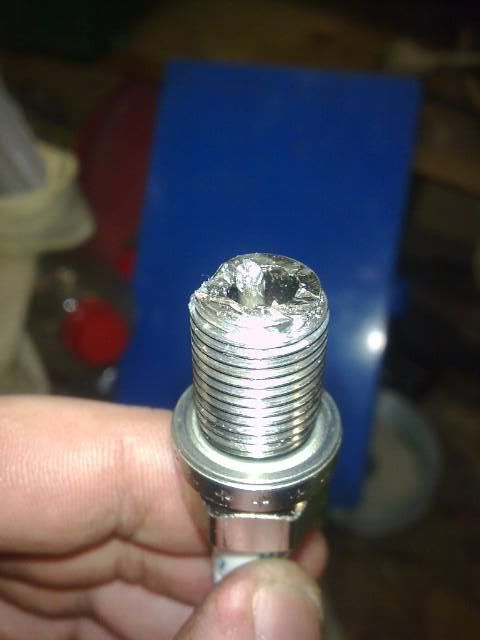

Posted Image

notice the lovely gouge mark across where the tip should be. Looks real like the edge of a valve to me. Cann the compression test. its obvious i've located the problem.

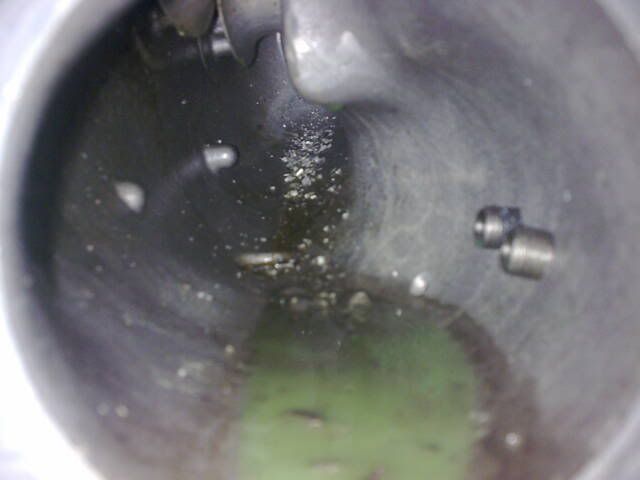

Whip the throttle body off, and i find this a whole heap of alloy shavings in the base of it (the coolant was what got in there when i pulled the lines to the throttlebody off)
Posted Image

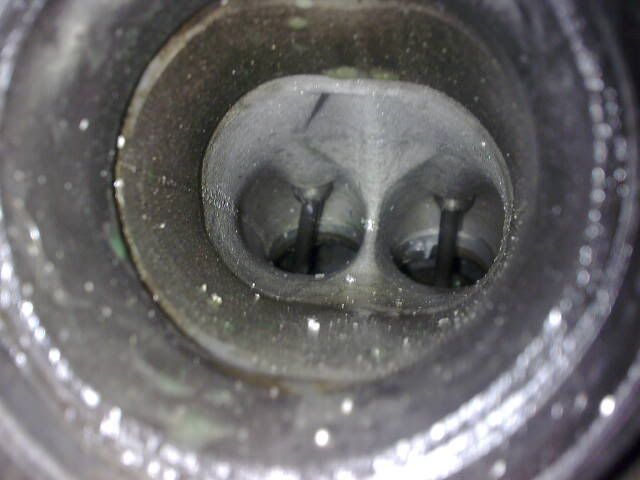

Get the whole inlet off. heres a pic looking towards the inlet valves of number 2 cyl
Posted Image
well what was inlet valves on number 2, both heads are non existent. If i look down the inlets to the rest of the cylinders, everything is fine. hmmm weird.

So whip off the exhaust manifold, turbo and all other bits keeping the engine on, and this is what i find.

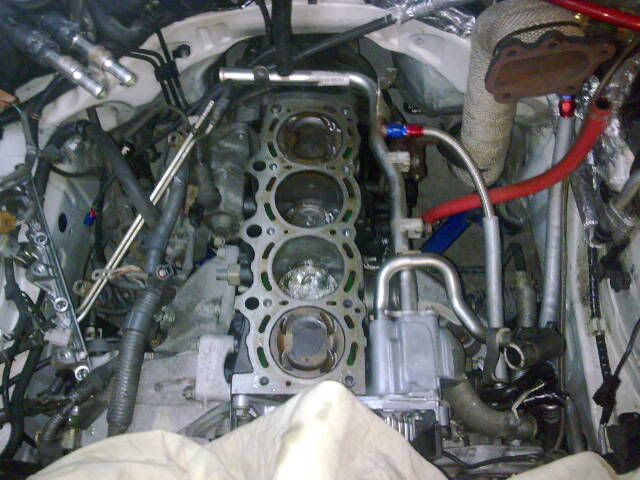

Posted Image

Number 2 bore is obviously where all the action happened. so heres a closeup on it.
Posted Image

Theres bits of valve sitting on top of the piston, bits of valveseat, all sort of shavings. Piston has taken a hammering, the bore is nicely scored. hard to tell what exactly has gone on other than merry hell has broken loose. Number 3 piston has taken a bit of a hammering too.

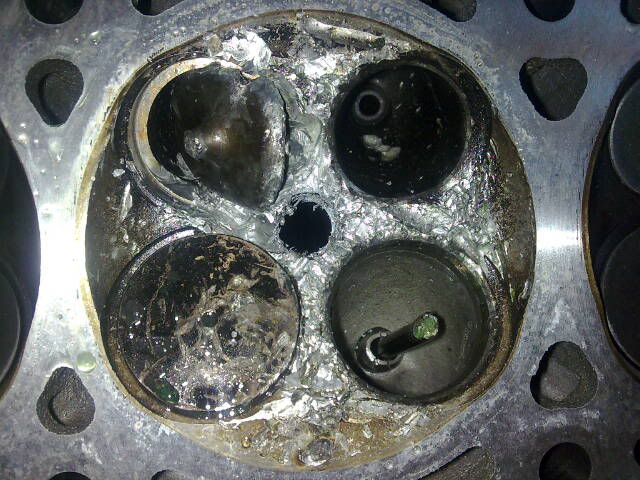

So lets have a look at the head. Dare i lift it up and see whats happened here. well the head looks to be fine, apart from number 2 cyl, which looks a little something like

Posted Image

top left you can see thats an exhaust valve head actually turned around and trying to make its way back out where the inlet valve used to live. It is wedged in there quite solidly. Suffice to say the head is toast.

To recap, damage sits something like:

2 x Piston
1 x Head
1 x Block
(possibly 1 rod, depends what else i find when i pull the block out and strip it down this weekend)

Now what im sure you are all wondering is how did this all happen? Well on closer inspection on the cylinders that survived mostly (i.e. 1&4) the piston shows signs of the valves just nicking the edge of the flycut, maybe .5mm at the absolute most. So clearly the failure is caused by piston hitting valve, this is obviously the noise that was heard through the headset.

Obviously at light throttle this wasnt a problem, as vvti wasnt advancing very much. But when the cam advances (it makes a large advance at around 5000rpm) is when this problem occours. There is no problem sans vvti advance, so at the end of the day the failure is mine, for not taking into account the extra timing advance that vvt-i brings during the measuring and mocking up stage of this build.

The obvious fix to this issue to allow the 2jz piston to be used, is to flycut the extra tiny amount to allow the valves to clear on full cam advance, so i am pretty confident these can still be used.

Obviously this sucks alot, but it is me who has made the mistake and it has cost me bigtime. I am very lucky that there was no damage to my turbo, as that would have pulled curtains on this project for good. So i'm just going to suck it up and wear it, coz theres nothing else i can do for now. If anyone has a spare block and or head complete for reasonable money, i'd like to hear from you, so i can get this build restarted.

As per the first post, i am posting this here in the hope that all reading can learn from this experience, not just me. As they say, smart people learn from their mistakes, but clever people learn from the mistakes of others.

Thanks for reading

Andrew
