Offset Mods For Large Brakes; Options, Spacers, Wheels?
Topic Started: Aug 13 2009, 02:01 PM (3,843 Views)
pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
Hi All,

One for those running the 4 pot supra brakes, GTR or Brembo/other there are a few.

Technically we should be talking about the disc/disk spacing when it comes to brake clearances. The curvature of the spokes to clear larger brakes.

Another way around this is to change to wheels with a different offset or add spacers which will push the rims outward from the hub allowing additional clearance. It's not an exact art as spoke design makes the difference.

So what brakes, what wheels are you using and what offset, any disc specification, if you have it.

---
kk guys here's the list so far in order of info

Te37 17x 7.5, +30
Stock Wheels 17x7.5+45 with a 15mm spacer
Weddsport RS-5 18x7.5, +51
Work Meisters 18x8's +301.
Evo7 Enkei wheels 17x8 +38 (+most stock evo wheels possibly)
GTR32 Vspec2 BBS wheels - 17x8 +30
CE28 - 17x7.5 +30
Evo8 Enkei wheels
Buddyclub QF 17x8 +35
Enkei RP01 17x8 +30 over
Weds SA70 17x8 +38
RE30 17x8 +30
Nismo LMGT4 17x7.5 +30
F-sport wheels. 18x8 +30
350z track wheels 18x8 +30
RX8 - 17?x7.5? +50 with 10mm spacers?
Supra Fitted - BBS LM 17 x 8 +44
Supra Fitted - Weds Sport SA-90 19 x 9.5 +25
Supra Fitted - Advan RG II 17 x 8 +35
Supra Fitted - Rays RE30 19 x 9 +25

Thanks all..
--

My secret agenda is to figure out what rims I can use and what kind of offset to trial for a cheap set when i'm getting my te's repaired. Any help appreciated.

I'll go first.

Brakes: Supra 4 pot
Previous Wheels/Offset/Disc: Stock 5 spoke, 17x7.5 +42, U/K
New Wheels/Offset/Disc: Te37 17x 7.5, +30, Designed to clear larger brakes.

Posted Image Posted Image
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
Anything that states "Will Clear Brembo Calipers" will work.

Here is a chart for those who are thinking of getting the kit:
Posted Image
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
Thanks nick, I guess there's no hard and fast rule for offset, but the wheel base that touches the hub to the spoke height shoud ideally be around 40mm or more.

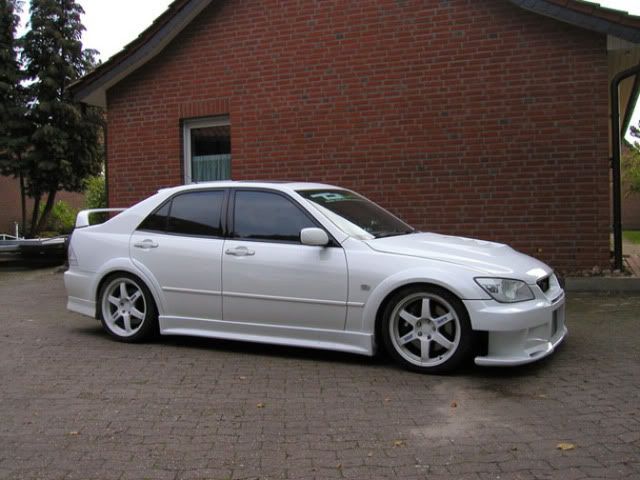

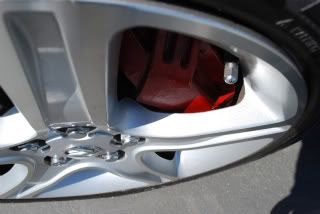

Google helped me, these are standard wheels running a 15mm spacer
Posted Image Posted Image
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

Distrb
Member Avatar
Nuts
[ *  *  *  *  *  * ]
I'll go second.

Brakes: TRD High Performance Brake Kit (Supra 4 pot in all reality)
Wheels/Offset/Disc: Weddsport RS-5 18x7.5, +51

Am running a 10mm wheel spacer and longer wheel studs to allow the wheel to clear the caliper.
Offline Profile Quote Post Goto Top

lexism
Member Avatar
FMWG!
[ *  *  *  *  *  * ]
Posted Image

18x8's on the front +30, "just" fit under the 3 piece work meisters.
My nightmares consist of potholes and speed bumps.
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
Charlie (Black200) is the best person for this...he used to be the wheel whore of the club with BBK.

I followed in his footstep though, this is my list of wheels that fitted:

1. Evo7 Enkei wheels - 17x8 +38 (i think any OEM EVO wheels fits)
2. GTR32 Vspec2 BBS wheels - 17x8 +30
3. TE37 - 17x7.5 +30
4. CE28 - 17x7.5 +30
4. Evo8 Enkei wheels -> staring at Charlie's brothers car :ph43r:

Other wheels in my which list that my fit:

Buddyclub QF 17x8 +35
Enkei RP01 17x8 +30 over
Weds SA70 17x8 +38
RE30 17x8 +30
Nismo LMGT4 17x7.5 +30
Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
Got any pics Reg? here's some I googled

Posted Image
te37's
Posted Image
ce28's - hahah another stolen pic heheh
Posted Image
re30's nup works cr

ps yes i'm bored at work and there isn't that much of a point to this thread
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
look at my build thread in the Private section....I got the Enkeis and BBS. BTW that ain't RE30...that is a Works CR which is also good.
Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
Thanks reggie, here we go...

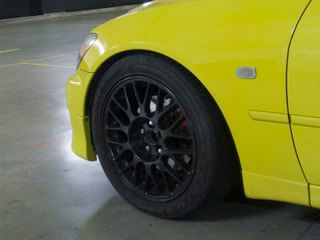

the evo 8 enkei's
Posted Image

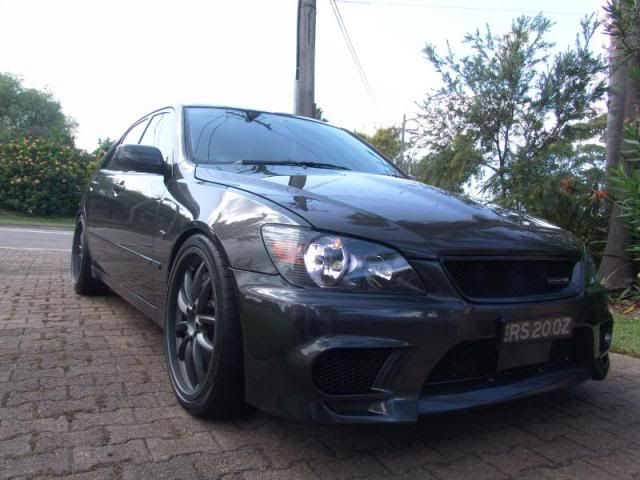

and who makes these are they the is-f wheels?
Posted Image
If they are IS-f wheels, safe to assume they have plenty of disk to clear big brakes or are they the bbs ones you were talking about
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
bwaahaha that wheel in Glenn's RS is the F-sport wheels. 18x8 +30s I think.

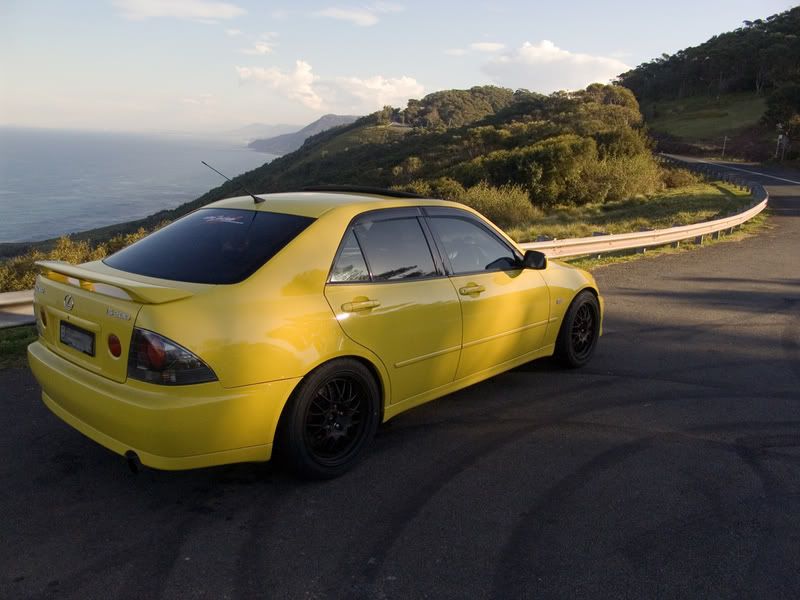

this is the BBS I got from Charlie.

Posted Image
Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
Oh no so Have I labeled those wrong on top too hahaha

ps look at all that circle work you have just done in that last picture....

List on top now, thanks everyone, more please!
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
pras,Aug 13 2009
04:22 PM

ps look at all that circle work you have just done in that last picture....

funnily enough those are tyres shines dripping out of the car instead of burnt rubber marks. ;) I don't think IS200 got the guts to :skid:
Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]

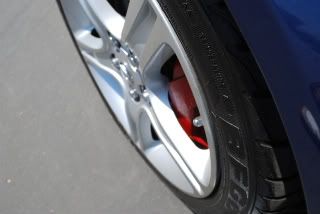

Posted Image
Ruthlessly raped sparkeystav's thread for this pic
Rx8 wheels - specs unknown 15mm spacers to clear
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
well if you add spacers then anything can fit.

I personnally don't trust spacers for spirited or track driving.

Also, Eldan has 350Z wheels over his BBK as well..don't know the dimensions though
Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
RE99IE,Aug 14 2009
11:10 AM
well if you add spacers then anything can fit.

I personnally don't trust spacers for spirited or track driving.

Also, Eldan has 350Z wheels over his BBK as well..don't know the dimensions though

True, but some would be worse than others right?

Yeah I don't like the idea of them either...

I like the idea of 350z track wheels though!
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

E910
Member Avatar
MOTUL 300V
[ *  *  *  *  *  * ]
pras,Aug 14 2009
12:53 PM
Ruthlessly raped sparkeystav's thread for this pic
Rx8 wheels - specs unknown 15mm spacers to clear

18x8JJ P=114.3/O=50 Made by either U-Mold or Hitachi (taken from Mazda EPC)
アルテッツァ RS200-Z 6MT
Posted Image
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
Thanks E910, Starting to see a pattern here.

It's not exact science, but rims with a +35 or better with no extreme spoke design seem to be a good bet when choosing wheels.

Then depending on the disc, ie spoke design you have a chance of fitting bigger brakes, howver more spacerage may be required.
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

smnt
Member Avatar
ISF200
[ *  *  *  *  *  * ]
Will R34GTR rims fit on our cars without protruding out too much?
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
What are the spec's mate?
7.5+30 & 8.5 8.5+40 sit really flush with a little bit of rolling for my te's.

Offset calculator should tell you how much they protrude.
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

smnt
Member Avatar
ISF200
[ *  *  *  *  *  * ]
18*9 +30 all round! :)
Offline Profile Quote Post Goto Top

pras
Member Avatar
kickin it!
[ *  *  *  *  *  * ]
smnt,Aug 14 2009
02:47 PM
18*9 +30 all round! :)

Extra 20mm outside of the gaurds on the front and no change to the inside

You'd loose 4mm on the inside of the rear and gain 16mm outwards.

You couldn't fit them, but with big rolling &/or massive camber maybe you could.
Go on do it...Or bolt on flares
BNE - AUS
WIP - My Build Thread
Offline Profile Quote Post Goto Top

smnt
Member Avatar
ISF200
[ *  *  *  *  *  * ]
Lol bail no thanks... They're cheap as now! :(
Offline Profile Quote Post Goto Top

black200
Member Avatar
in my own paradise
[ *  *  *  *  *  *  * ]
hey pras! if you need wheels let me know, i'm happy to lend you a pair from my ever-expanding collection.

i'm a bit strapped to pay the shipping costs, but shouldn't cost more than 50 bucks to get a pair of te's up to you. Either that or can send a pair up with your car when it gets back from brett! :)
ftw
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
black200,Aug 15 2009
01:54 AM
hey pras! if you need wheels let me know, i'm happy to lend you a pair from my ever-expanding collection.

i'm a bit strapped to pay the shipping costs, but shouldn't cost more than 50 bucks to get a pair of te's up to you. Either that or can send a pair up with your car when it gets back from brett! :)

you are such a wheel whore Mr Charlie. :P ...what wheels do you have now?
Posted Image
Offline Profile Quote Post Goto Top

eldan89
Member Avatar
TTE
[ *  *  * ]
[f**k] I didn't know this thread was around, I would have contributed earlier.
The 350z track rims do clear the supra calipers by miles, the specs on them are 18x8 +30 all round.

The pics....

Posted Image

Posted Image
