Is250 Wheels On A 200
Topic Started: Oct 5 2009, 06:56 PM (724 Views)
johndoe1003
Soccer Mom
[ * ]

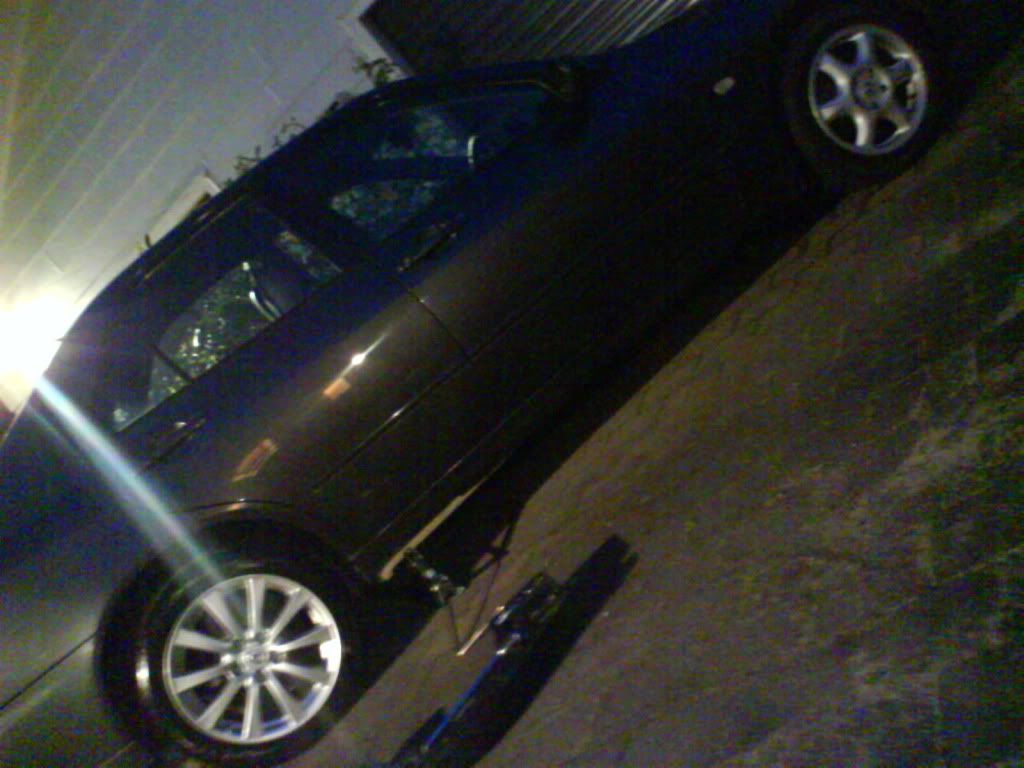

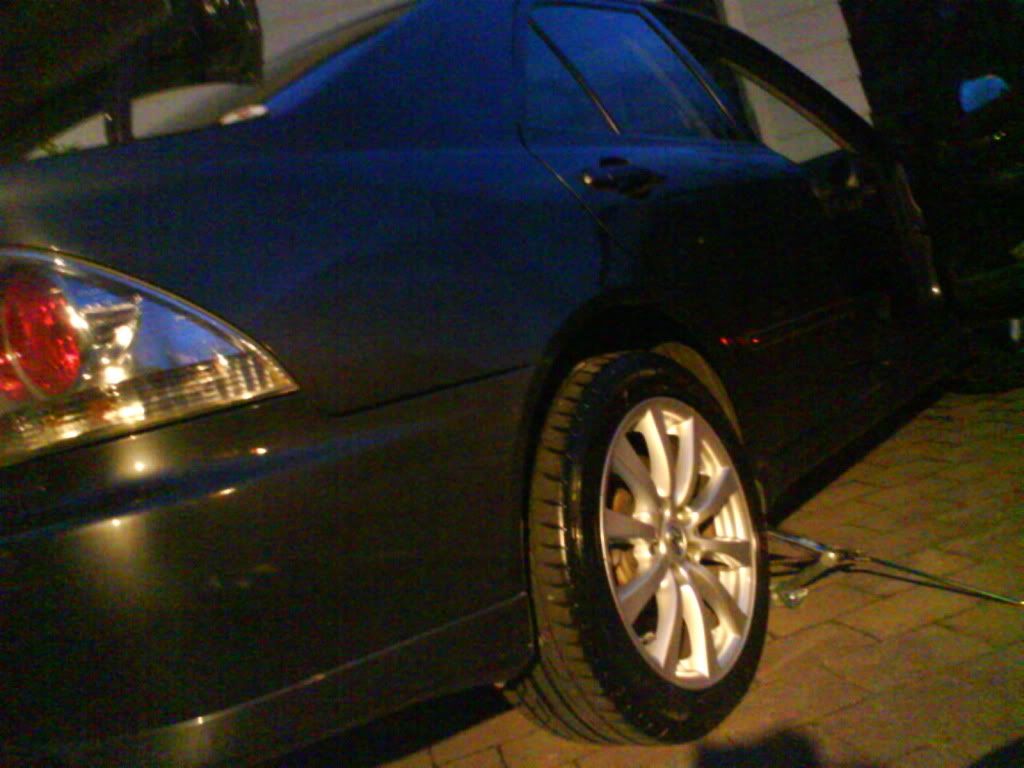

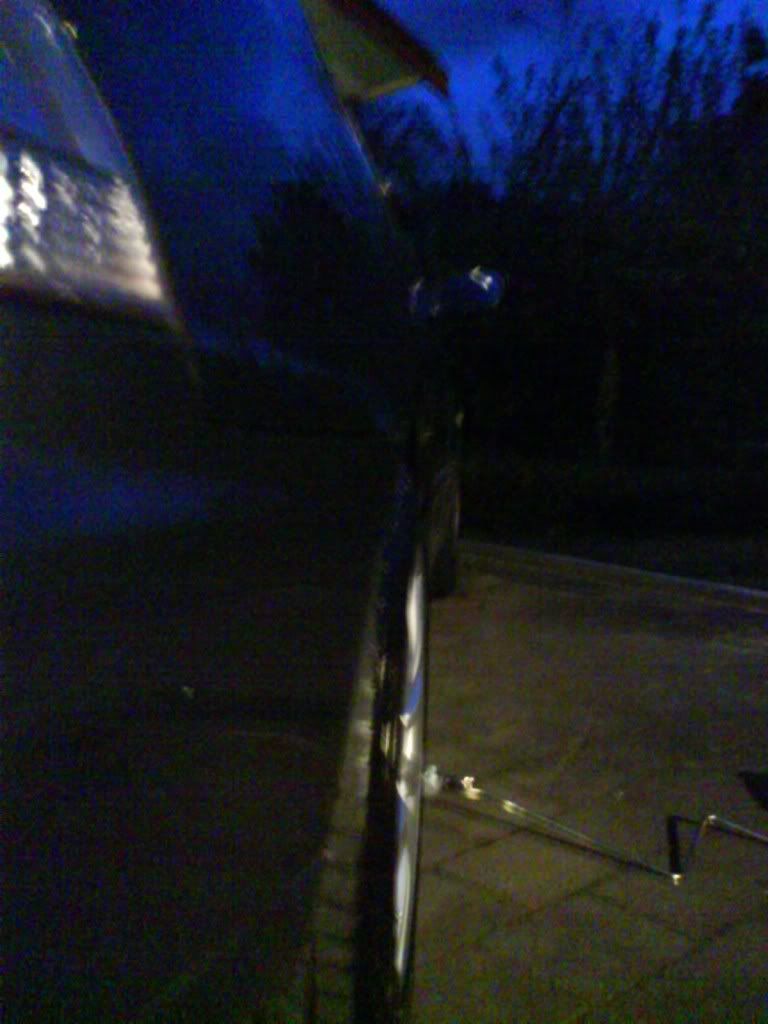

hey guys, i have the opportunity to fit some is250 elect 17" wheels to my is200, ive test fitted one on the rear, the offset is real close to being too wide. what do you guys think? doable? would need smaller tires/maybe some stretch, keeping in mind i want to lower the car at some point, which brings in another question, will the wheels camber much etc? im not looking for rim tuck low, sort of want the rear tire to be in line with the guard... hers some shitty pics to show you what i mean bout the wheels. any info on offsets between the two cars would be great too :)

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

RE99IE
Wakefield Addict
[ *  *  *  *  *  * ]
good offset...nothing a camber can't fix ^_^
Posted Image
Offline Profile Quote Post Goto Top

wesley
Member Avatar
touge lover
[ *  *  *  *  *  *  * ]
there what 17x8.5 +40 or +35? with 255 rear tyres?

2003 IS200 Sport Luxury 4AT SOLD
2002 WRX STI V7 6MT SOLD
2000 Zenki RS200 Z Etd 6MT SOLD
1999 Zenki RS200 Z Etd 6MT SOLD - Wakefield Park P.B. 1:16.1
2006 BMW 130i 6MT RIP
2002 Integra Type R 6MT - Wakefield Park P.B 1:13.9
Offline Profile Quote Post Goto Top

SSML
Member Avatar
Custom
[ *  *  *  *  * ]
from my understanding. IS250 LUX model comes with 225/45/17 @ front, and 245/40/17 for rear, and I think front and rear rim might have different width/offset. so you have have to find out from the owner's manual.

the wheel u test-fitted, was that from front wheel or rear wheel of an IS250?
02 IS200 Lux6MT BneAus
2008 addition: DIY job:DBA 4000series x-drilled rotors + bendix pads :D
Offline Profile Quote Post Goto Top

johndoe1003
Soccer Mom
[ * ]
thats a right rear wheel off the is250 you can see in one of the pics, so id need to try a front too? ill have to wait till one comes home again sometime or ill hit up lexus for the info today and see what i can find out
Offline Profile Quote Post Goto Top

johndoe1003
Soccer Mom
[ * ]
well that didnt take long. onfo on the wheels is this.... 17' wheels are 8JJx17 F/R 225/45/17 front or 245/45/17 rear. not sure what the JJ means? thje 18s for is250s are 8Jx18 front and 8.5Jx18 rear... id need to change tires anyway as the circumference is different im sure compared to a 200. what should the 17s run factory on a 200? i only have the ugly 16s :(
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
You could probably do with a small tire stretch.

Go for something like:
215-225 for the fronts
225-235 for the rears

With those tires on them you should be able to tuck them inside the guard with some camber (which will come when you lower the car)

I've managed to tuck 18x8.5s with 215/40/18s in the past without scrubbing
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

ShoiezDesign
Member Avatar
.
[ *  *  *  *  * ]
They will fit no troubles.

I am currently on 17x9 235/45 +38 and with the guards rolled and it tucks in nicely as you drop you gain a fair wack of camber
Offline Profile Quote Post Goto Top

johndoe1003
Soccer Mom
[ * ]
soooo to get the correct rollout on these wheels, while being able to clear the guards, what tire size would i need? 215/45s? smaller? i reckon ill need to roll the insides of the guard as well, but not really keen on doing that, trying to molest the car as little as possible
Offline Profile Quote Post Goto Top

ShoiezDesign
Member Avatar
.
[ *  *  *  *  * ]
johndoe1003,Oct 6 2009
04:31 AM
soooo to get the correct rollout on these wheels, while being able to clear the guards, what tire size would i need? 215/45s? smaller? i reckon ill need to roll the insides of the guard as well, but not really keen on doing that, trying to molest the car as little as possible

Yeh i would probably go a 225 or 235 but its hard to say without visually seeing the clearance
Offline Profile Quote Post Goto Top

johndoe1003
Soccer Mom
[ * ]
yeah well on that wheel was a 245/45, which was way to big. apparently the wheels are only 2mm wider though, so must be the tire thats putting it on the limit.
Offline Profile Quote Post Goto Top

SSML
Member Avatar
Custom
[ *  *  *  *  * ]
the factory IS200 17"x7 rim & 215-45-17 tyres all around .

I still got factory 17"x7 wheels, but I got 225/45/17 tyres on all 4 corners.

so I guess with IS250 17"x 8 rims, u can put 225-45-17 on all 4 corners without problems.
02 IS200 Lux6MT BneAus
2008 addition: DIY job:DBA 4000series x-drilled rotors + bendix pads :D
Offline Profile Quote Post Goto Top
