Airbox And Throttle Body
Topic Started: Jul 3 2011, 06:36 PM (1,489 Views)
IS200-Winnie
Unregistered

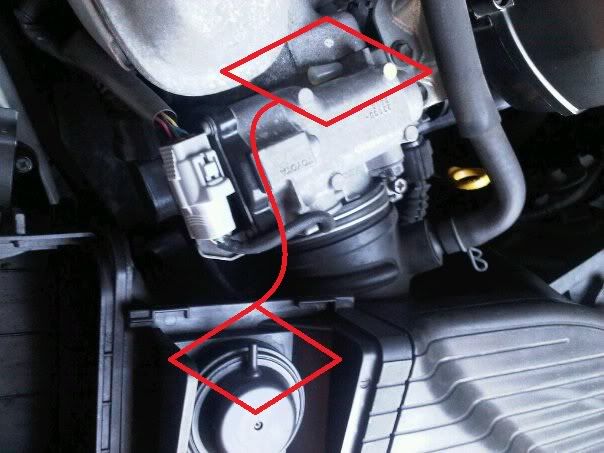

Ok so I was checking my pannel filter and noticed a pnematic actuator that has been disconnected.

Can someone please explain what it does? My guess is it opens the airbox up to allow more air?

By the look of the throttle body there is a nozzle that is covered up and I could take a guess to say that this is where its ment to be connected but I have no experience with the beams only 3SGTE's.

Posted Image
Quote Post Goto Top

nz_climber
Lowered
[ *  *  * ]
There is meant to be a pipe that goes from the throttle body to a vaccum soleniod under the airbox, that is then connected to the actuator on top of the airbox (pictured)

At low rpm the actuator closes the intake that goes over the radiator, and just draws air from the the inner guard (guessing its a noise/emissions thing) leaving it disconnected will means it is open all the time so letting in more air.
Building a Beams 3sge powered Mcgregor 7.

Check out progress (or lack of..) at http://www.lotus7.co.nz/forum/viewtopic.ph...957eb3663a85224
Offline Profile Quote Post Goto Top

IS200-Winnie
Unregistered

hmmm I would say it has more to do with stopping the warm air being sucked in from the radiator by the look of it.

So low RPM means low speed possibly stopped so as to prevent hot air being sucked in at the lights it sucks it in from the inner guard?? Thats my take anyway.
Quote Post Goto Top

E910
Member Avatar
MOTUL 300V
[ *  *  *  *  *  * ]
I unhooked mine years ago & I'd say it for noise suppression as there's a distinct growl around 2K that wasn't there when the flap was closed
アルテッツァ RS200-Z 6MT
Posted Image
Offline Profile Quote Post Goto Top

peanut
Member Avatar
Red Horns Devil
[ *  *  *  *  *  * ]
interesting..may try this on the weekend

For Vinyl Car Wrapping solutions and CarbonFiber parts email:adam@modbox.works
Offline Profile Quote Post Goto Top

nz_climber
Lowered
[ *  *  * ]
IS200-Winnie,Jul 4 2011
12:45 PM
hmmm I would say it has more to do with stopping the warm air being sucked in from the radiator by the look of it.

So low RPM means low speed possibly stopped so as to prevent hot air being sucked in at the lights it sucks it in from the inner guard?? Thats my take anyway.

No, that inlet to the airbox is not behind the radiator, it sits on top sucking cold air from the front of the car.
Building a Beams 3sge powered Mcgregor 7.

Check out progress (or lack of..) at http://www.lotus7.co.nz/forum/viewtopic.ph...957eb3663a85224
Offline Profile Quote Post Goto Top

Maccabro
Member Avatar
beached az!
[ *  *  *  * ]
im sure its there to restrict the intake slightly for more torque at lower rpm, and opens up at higher rpm to allow more air into the airbox. where the airbox draws air in from the front guard isnt exactly a big opening is it, actually its rather small.

thats my opinion anyway.

altezza 3sge + apexi ax53b60 turbo kit + cwest body kit/ bonnet + modelista angel eye HID head lights +18" enkei NT03 + zeal adjusties + ........................more!
Offline Profile Quote Post Goto Top

Piston
3SGEBeams
[ *  * ]
I bought my Altezza with an Apexi Power intake, but I still have the hose/pipe connected to the throttle, and next to the hose is nothing, so I have the hose lying around, if I disconnect the hose, how I can seal the hole in the throttle??
Offline Profile Quote Post Goto Top

2ToneTezza
Custom
[ *  *  *  *  * ]
Piston,Jul 21 2011
05:19 AM
I bought my Altezza with an Apexi Power intake, but I still have the hose/pipe connected to the throttle, and next to the hose is nothing, so I have the hose lying around, if I disconnect the hose, how I can seal the hole in the throttle??

easiest way(but not necessarily the prettiest) is to cut the hose short and plug the hose with something, i just used a machine screw with a dab of silicone on the thread, worked a treat :)
'99 Altezza RS200Z- project car
'04 1240cc Nissan March rocketship
'01 KTM520EXC motard
Offline Profile Quote Post Goto Top

Piston
3SGEBeams
[ *  * ]
When I change from 2nd gear to 3rd gear, or from 3 to 4 @ 6000+ rpm, there is a sound like an explosion in the exhaust, I dont know if is in the muffler or before...
does anyone know what happen?
Offline Profile Quote Post Goto Top

Maccabro
Member Avatar
beached az!
[ *  *  *  * ]
Piston,Jul 21 2011
06:19 AM
I bought my Altezza with an Apexi Power intake, but I still have the hose/pipe connected to the throttle, and next to the hose is nothing, so I have the hose lying around, if I disconnect the hose, how I can seal the hole in the throttle??

you say ur hearing an explosion in ur exhaust, sounds like a backfire and could be from the hose ur talking about not being pluged up, ur car is probly running lean and causing the backfires. running leans not good man, i would expect car dont idle smoothly coz of it too??? plug it up man, ur car will love u for it.
altezza 3sge + apexi ax53b60 turbo kit + cwest body kit/ bonnet + modelista angel eye HID head lights +18" enkei NT03 + zeal adjusties + ........................more!
Offline Profile Quote Post Goto Top
