Turbo + Stock Airbox; Anyone done it?
Topic Started: Mar 28 2012, 11:37 PM (1,782 Views)
Bry
Body-Kitted
[ *  *  *  * ]
Considering ditching the pod filter and going standard airbox for a neater bay, and possibly a smoother low end.

To do this I'll need to completely remake my intake pipe and play with the others a little, so before i bother i would like to see if anyone's done the same thing and can comment on the effect it had.

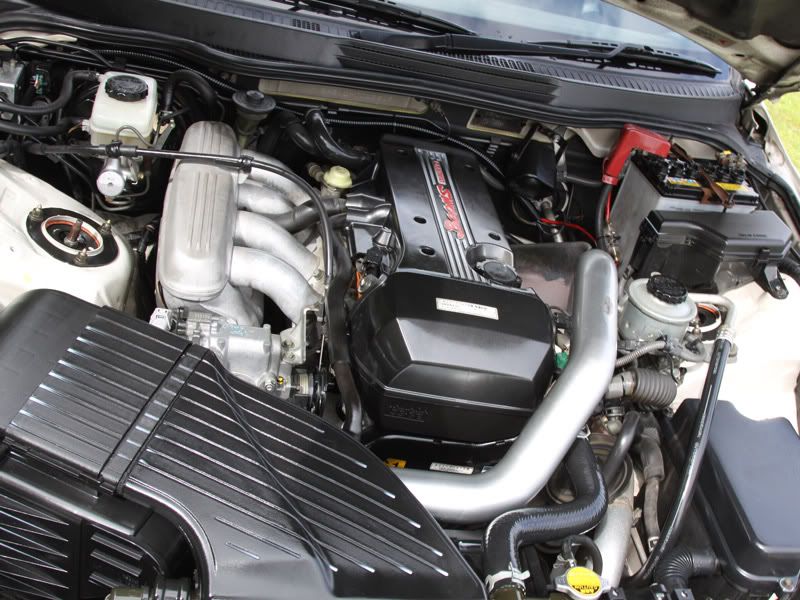

Inspiration - Toms 280T style

Posted Image

RIP:
Posted Image
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
Why not just make a CA-box to suit?

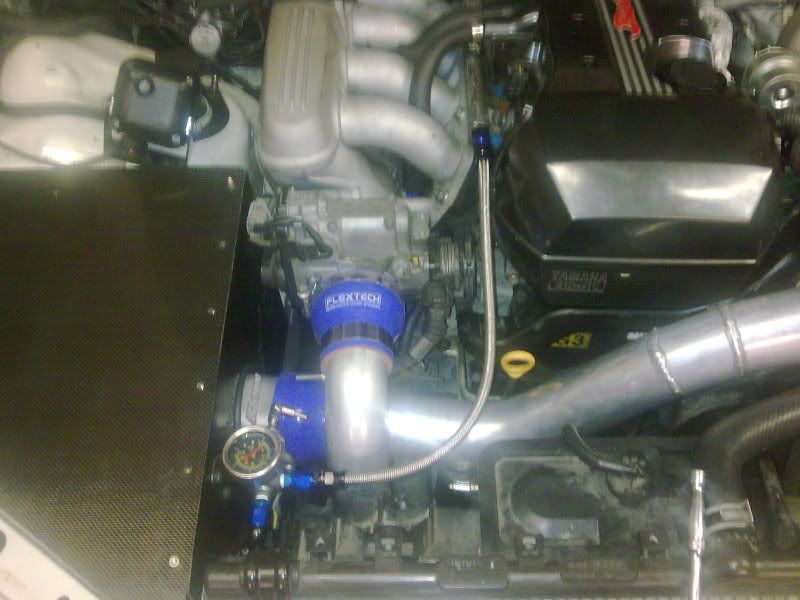

Here is one stolen from Andrew's (distrb) VIP Garage build thread:
Posted Image

Another one from Craig's (craigb) build thread, albeit it's NA, same idea:
Posted Image
Which he later painted:
Posted Image
Posted Image
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

tuiman
Stock
[ *  * ]
Hey iv been trying to figure out the same thing, trying to put my factory airox back in. I wona get rid of the horse under my bonnet.
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
Yeh, I already have a CA box - but would prefer to get it looking as factory as possible under the hood!
Offline Profile Quote Post Goto Top

Soiled Altezza
Member Avatar
...
[ *  *  *  *  *  * ]
Just put the factory box in. Run intake pipe to back, connect with silicon joiner to where the factory bendy pipe to the throttle body goes... What do you need to know? Dont know how well it will handle the flow up top though?

Don't think anyone who has turbod their car on this forum has done it so it'll be trial and error your end. If you don't like it though it wont be a hard one to change back so just smash it in there and see.
Posted Image
Garage: http://altezza.dualzdesigns.com/viewcar.ph...wner=17&frmpg=0
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
Yes, I would like to know if anyone achieved positive (or even negative) results in doing putting factory airbox in and whether it caused any sort of restriction or improved drive ability.

My intake pipe runs BELOW the cooler pipe that goes into the throttle body, so piping will require modification and or remaking in order to get it fitting up.
Offline Profile Quote Post Goto Top

E910
Member Avatar
MOTUL 300V
[ *  *  *  *  *  * ]
One of the lads on tezzaworld took to the inside of his air box with a dremel. Smoothed out all sides & reckoned it made an improvement to air flow. I've been try to get him to post some pics but to no avail. Could be worth a try to help with top end flow for your turbo application.
アルテッツァ RS200-Z 6MT
Posted Image
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
Good idea :)
Offline Profile Quote Post Goto Top

Leiden
Member Avatar
NZ, Whangarei
[ *  *  *  *  *  *  * ]
What you dont realise is those edges / ribs are partly responsible for straightening the airflow over the maf sensor, if you remove them you might as well just run a pod filter?
Project Thread
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
So this Sunday I'll be knocking up some new intake piping and modding cooler piping to suit a standard airbox I picked up from Japan - I'll let you guys know how it goes... hopefully decently as it will make my engine bay look 100x neater!

Anybody got just the snorkel piece that goes over the radiator for me?
Offline Profile Quote Post Goto Top

supertezz
Member Avatar
3SGE+T = :D
[ *  *  *  * ]
real keen to see how you go with this I am thinking of doing the exact same thing and it would solve my air flow sensor location problem
3SGE+T = :D

Posted Image
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
Will give some feedback and photos once done. I just want my engine bay neater, and hopefully gain a bit of low down torque!
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
Sooo after measuring everything up properly it was too tight a squeeze without alot of custom work... so ended up doing this instead:

Posted Image

Looks neater at least!
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
Looks good either way!
Pity our ECU box is on the LH side, would be a lot easier to put the intake there should it be somewhere else lol
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Bry
Body-Kitted
[ *  *  *  * ]
Haha I know, I strongly considered extending some wires and moving it... but cbf :P.

It's a shame to cover up the nice welds but I'll be painting the the pipes in black hammer/wrinkle coat soon.
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
If only someone out there made a loom extension, someone keen to take up the challenge? LOL

Something similar to this but approx 1.5M long hehe
Posted Image
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Soiled Altezza
Member Avatar
...
[ *  *  *  *  *  * ]
Would be easy enough to make if you could get a hold of the male and female plugs from somewhere? Toyota sell them Nick?

Would have to leave one end unpinned to get the wires in to the cabin though if you were wanting it in there.
Posted Image
Garage: http://altezza.dualzdesigns.com/viewcar.ph...wner=17&frmpg=0
Offline Profile Quote Post Goto Top

Higgsy
Member Avatar
Joining the wagon club
[ *  *  *  *  *  * ]
If you had that adaptor it wouldnt be hard. just craploads of tedious soldering. Once you added an extra wire on.
from a beams ITB to a 2JZ
Offline Profile Quote Post Goto Top

Tezz-Winnie
Unregistered

No soldering involved you just need a pin insertion tool and a lot of patience
Quote Post Goto Top

madaltezza
Sleeper
[ *  *  *  *  *  * ]
iv move my ecu in to the car in saying that i run a link was a bit of a mish do thow
Offline Profile Quote Post Goto Top

Higgsy
Member Avatar
Joining the wagon club
[ *  *  *  *  *  * ]
Tezz-Winnie,Jul 10 2012
01:04 PM
patience


whats that?
im unfamiliar with this term.

from a beams ITB to a 2JZ
Offline Profile Quote Post Goto Top

xnickx
Member Avatar
^^ You may thank me ^^
[ *  *  *  *  *  *  *  *  * ]
Can only get 3 of the 4 male connectors but not the female :(
Contacting me for parts

Posted Image

Posted Image
Offline Profile Quote Post Goto Top
